Unlocking the Power of Electroplating: A Deep Dive into How it Works and Why It's Used

Unlocking the Power of Electroplating: A Deep Dive into How it Works and Why It's Used

This comprehensive guide explores the fascinating world of electroplating, a process that uses electricity to deposit a thin layer of metal onto an object. We'll uncover the science behind this technique, explaining how the interplay of anodes, cathodes, and electrolyte solutions creates stunning and functional metal coatings. This article is worth reading because it demystifies a process that impacts numerous industries, from automotive and electronics to jewelry and decorative finishes, and provides valuable insights into why electroplating is the go-to method for enhancing the properties and appearance of countless products.

1. What is Electroplating and How Does it Work?

Electroplating is an electrochemical process that uses an electric current to reduce dissolved metal cations in a solution, forming a thin metal coating on a conductive object, also known as the substrate. This process is used to improve the surface properties of the substrate, such as its appearance, durability, corrosion resistance, and conductivity. The object to be electroplated is made the cathode (negatively charged electrode) in an electrolytic cell, while the plating metal is the anode (positively charged electrode).

The object to be plated is placed into a container with an electrolyte solution. The electrolyte solution contains metal ions of the desired plating metal. A power supply, such as a rectifier, is connected to the anode and the object to be plated. When the electric current is applied, the positively charged metal ions in the electrolyte solution are attracted to the negatively charged surface of the substrate. Here, they gain electrons and are reduced to their metallic form, depositing onto the substrate as a thin, uniform layer. The anode, typically made of the same metal being plated, gradually dissolves into the electrolyte solution, replenishing the metal ions. This process continues until the desired thickness of the metal coating is achieved.


2. What are the Key Components of an Electroplating System?

An electroplating system, at its core, consists of several key components that work together to facilitate the deposition of a metal coating onto a substrate. These components include:

  • Electrolyte Solution: This is an aqueous solution, also called the plating bath, that contains dissolved ions of the plating metal. For example, in copper plating, copper sulfate is often used, providing copper ions. The electrolyte solution conducts electricity and serves as the medium through which metal ions travel from the anode to the cathode.

  • Anode: The anode is the positively charged electrode in the electroplating setup. It is typically made of the same metal that is being plated. As the electroplating process progresses, the anode dissolves into the electrolyte solution, replenishing the metal ions that are being deposited onto the cathode.

  • Cathode: The cathode is the negatively charged electrode, which is the object to be plated. It attracts the positively charged metal ions from the electrolyte solution. As these ions come into contact with the cathode, they gain electrons and are reduced to their metallic form, depositing onto the cathode's surface.

  • Power Supply: A direct current (DC) power supply, often a rectifier, provides the electrical energy needed to drive the electroplating process. It maintains a constant flow of current between the anode and the cathode, facilitating the movement of metal ions and their deposition onto the substrate.

In addition to these essential components, an electroplating system may include other elements such as tanks to hold the electrolyte solution, heaters or coolers to regulate the temperature of the bath, agitation systems to ensure even mixing of the solution, and filters to remove impurities.

3. What are the Different Types of Electroplating?

Electroplating encompasses a variety of techniques, each tailored to specific metals and applications. Some of the most common types of electroplating include:

  • Copper Plating: Copper plating is often used as an undercoat for other plating metals due to its excellent conductivity and adhesion properties. It can also be used as a final finish for decorative purposes or to enhance the electrical conductivity of a component. The process typically uses a copper anode and a copper sulfate solution as the electrolyte.

  • Nickel Plating: Nickel plating is valued for its corrosion resistance, wear resistance, and attractive appearance. It can be applied as a bright, reflective finish or as a dull, matte coating, depending on the specific additives used in the plating bath. Nickel plating is frequently used in automotive parts, plumbing fixtures, and household appliances.

  • Chrome Plating: Chrome plating is renowned for its hardness, durability, and brilliant, mirror-like finish. It's often used for decorative purposes on items like automotive trim, motorcycle parts, and household fixtures. Chrome plating also provides excellent corrosion protection.

  • Gold Plating: Gold plating is used to impart a luxurious, tarnish-resistant finish to jewelry, electronics, and decorative items. It also offers excellent electrical conductivity, making it valuable in electronic connectors and contacts. The thickness of the gold layer can vary depending on the application, from a thin flash plating to a heavier, more durable coating.

  • Silver Plating: Like gold plating, silver plating is used for both decorative and functional purposes. Silver offers the highest electrical conductivity of all metals, making it ideal for electrical contacts, switches, and conductors. It's also used for plating tableware, jewelry, and mirrors.

These are just a few examples, and many other metals and alloys can be used in electroplating, including tin, zinc, palladium, rhodium, and brass. Each type of metal plating offers a unique combination of properties, making it suitable for specific applications.

4. What is Electroless Plating and How Does it Differ from Electroplating?

Electroless plating, also known as autocatalytic plating, is a process that deposits a metal coating onto a substrate without the use of an external electric current. Unlike electroplating, which relies on an external power source to drive the deposition of metal ions, electroless plating depends on a chemical reaction between the substrate and the plating solution. This technique is particularly useful for plating non-conductive materials like plastics and for achieving uniform coatings on complex shapes.

The most common type of electroless plating is electroless nickel plating. The process typically involves immersing the substrate in a plating solution containing nickel ions, a reducing agent (such as hypophosphite or borohydride), and various complexing agents and stabilizers. The reducing agent reacts with the nickel ions in the solution, causing them to be reduced to their metallic form and deposited onto the substrate surface. The reaction is autocatalytic, meaning that once the initial layer of nickel is deposited, it acts as a catalyst for the continued deposition, allowing the plating to build up to the desired thickness.


5. What are the Benefits of Electroplating?

Electroplating offers a multitude of benefits that make it a valuable process across various industries. Here are some of the key advantages:

  • Corrosion Protection: One of the primary benefits of electroplating is its ability to enhance the corrosion resistance of a substrate. By applying a layer of a corrosion-resistant metal, such as nickel, chrome, or zinc, the underlying material is protected from environmental factors that can cause rust, oxidation, and degradation.

  • Enhanced Durability and Wear Resistance: Electroplating can significantly improve the durability and wear resistance of a part. Hard metal coatings, such as those provided by chrome or nickel plating, can increase the surface hardness of the substrate, making it more resistant to abrasion, scratching, and wear.

  • Improved Conductivity: For applications requiring electrical conductivity, electroplating with highly conductive metals like copper, silver, or gold can enhance the performance of electrical contacts, connectors, and other components.

  • Aesthetic Appeal: Electroplating can dramatically improve the appearance of an object. It allows for the application of bright, reflective finishes like chrome or gold, or more subdued finishes like brushed nickel or black oxide, enhancing the visual appeal and perceived value of a product.

  • Increased Thickness and Dimension: Electroplating can be used to build up the thickness of a part or to restore worn or damaged surfaces. This is particularly useful in the repair and refurbishment of components.

  • Chemical Resistance: Certain types of electroplating, such as nickel or gold plating, can improve a substrate's resistance to chemical attack, making it suitable for use in harsh environments.

  • Solderability: Electroplating can enhance the solderability of a component, making it easier to create strong and reliable solder joints in electronic applications.

These benefits make electroplating a versatile and widely used surface treatment process across numerous industries, from automotive and aerospace to electronics and consumer goods.

6. What are the Common Applications of Electroplating?

Electroplating finds applications across a diverse range of industries, where it's used to enhance the properties and appearance of various products. Here are some notable examples:

  • Automotive: Electroplating is widely used in the automotive industry to provide corrosion protection and decorative finishes to various components, including bumpers, grilles, trim, emblems, and wheels. Chrome plating, in particular, is a popular choice for creating bright, reflective surfaces on both metal and plastic parts.

  • Electronics: In the electronics industry, electroplating is crucial for improving the conductivity and solderability of connectors, contacts, printed circuit boards (PCBs), and other components. Gold, silver, and copper plating are commonly used due to their excellent electrical conductivity.

  • Aerospace: The aerospace industry relies on electroplating to enhance the corrosion resistance, wear resistance, and durability of critical components. Parts such as fasteners, landing gear components, and engine parts are often electroplated with metals like cadmium, nickel, and chromium.

  • Jewelry: Electroplating is extensively used in jewelry manufacturing to apply thin layers of precious metals like gold, silver, and rhodium onto base metals. This allows for the creation of affordable yet attractive jewelry with the appearance of solid gold or silver.

  • Plumbing Fixtures: Faucets, showerheads, and other plumbing fixtures are often electroplated with metals like chrome or nickel to provide a durable, corrosion-resistant, and aesthetically pleasing finish.

  • Medical Devices: Electroplating plays a role in the medical industry by enhancing the biocompatibility, corrosion resistance, and wear resistance of implants, surgical instruments, and other medical devices.

  • Decorative Finishes: Beyond functional applications, electroplating is widely used for decorative purposes on a variety of consumer products, including home décor items, appliances, and personal accessories.

These are just a few examples, and the applications of electroplating continue to expand as new technologies and plating techniques are developed.

IndustryApplicationPlating Metal(s)Benefits
AutomotiveBumpers, grilles, trim, emblems, wheels, interior componentsChrome, Nickel, Zinc, CopperCorrosion resistance, wear resistance, aesthetic appeal, durability
ElectronicsConnectors, contacts, PCBs, semiconductor componentsGold, Silver, Copper, Tin, NickelElectrical conductivity, solderability, corrosion resistance, wear resistance
AerospaceFasteners, landing gear, engine parts, structural componentsCadmium, Nickel, Chromium, Zinc-NickelCorrosion resistance, wear resistance, durability, high-temperature resistance
JewelryRings, necklaces, bracelets, earringsGold, Silver, Rhodium, PlatinumAesthetic appeal, tarnish resistance, durability, hypoallergenic properties
Plumbing FixturesFaucets, showerheads, handles, drainsChrome, Nickel, BrassCorrosion resistance, wear resistance, aesthetic appeal, ease of cleaning
Medical DevicesImplants, surgical instruments, diagnostic equipmentGold, Platinum, Palladium, Titanium, Stainless SteelBiocompatibility, corrosion resistance, wear resistance, sterilization compatibility
Decorative FinishesHome décor, appliances, hardware, lighting fixturesChrome, Nickel, Gold, Silver, Brass, CopperAesthetic appeal, tarnish resistance, durability, enhanced perceived value
IndustrialMachine parts, tools, molds, diesNickel, Chromium, Zinc, CadmiumCorrosion resistance, wear resistance, hardness, lubricity, dimensional accuracy

7. How to Choose the Right Electroplating Method for Your Needs

Selecting the appropriate electroplating method for a specific application requires careful consideration of several factors. Here's a guide to help you make the right choice:

  1. Substrate Material: The type of material you're plating onto is crucial. Different metals and plastics have varying levels of compatibility with different plating processes. For example, while many metals can be directly electroplated, plastics require a pre-treatment process to make them conductive.

  2. Desired Finish: What appearance are you aiming for? Do you need a bright, reflective finish like chrome, a more subdued look like brushed nickel, or a specific color like gold or copper? Different plating metals offer different aesthetic qualities.

  3. Functional Requirements: Beyond aesthetics, consider the functional properties you need. Do you need enhanced corrosion resistance, wear resistance, electrical conductivity, or heat resistance? For instance, nickel plating provides excellent corrosion protection, while gold offers superior conductivity.

  4. Production Volume: The scale of your production will influence the most cost-effective method. Some methods, like barrel plating, are better suited for high-volume runs of small parts, while rack plating is more appropriate for larger or more delicate items.

  5. Budget: Different plating metals and processes have varying costs associated with them. Precious metals like gold and platinum will naturally be more expensive than base metals like copper or nickel.

  6. Environmental Considerations: Some plating processes involve the use of hazardous chemicals, while others are more environmentally friendly. Consider the environmental impact of the plating method and choose a process that aligns with your sustainability goals.

Consulting with an experienced electroplating service provider can be invaluable in selecting the right method. They can assess your specific needs, recommend the most suitable plating process and metal, and provide guidance on design for manufacturability.


8. What are the Different Techniques Used in Electroplating?

Electroplating encompasses several different techniques, each with its own advantages and limitations. Here are some of the most common methods:

  • Rack Plating: In rack plating, the objects to be plated are mounted on racks that are then immersed in the plating solution. The racks provide electrical contact and hold the parts in a specific orientation to ensure uniform plating. Rack plating is suitable for larger parts, complex shapes, and delicate items that cannot withstand tumbling.

  • Barrel Plating: Barrel plating is used for plating large quantities of small parts. The parts are placed inside a rotating barrel with perforated walls, which is then immersed in the plating solution. The tumbling action of the barrel ensures that all surfaces of the parts are evenly exposed to the electrolyte. Barrel plating is a cost-effective method for high-volume production but is not suitable for delicate or very large parts.

  • Vibratory Plating: This technique is used for plating small, delicate parts that could be damaged by the tumbling action of barrel plating. The parts are placed in a vibrating bowl containing the plating solution and conductive media. The vibration ensures even plating and prevents the parts from sticking together.

  • Brush Plating: Brush plating, also known as selective plating, is a method where the plating solution is applied to a localized area of the substrate using a brush or stylus connected to the power supply. This technique is often used for touch-up work, repairs, or plating parts that are too large to be immersed in a tank.

The choice of technique depends on factors such as the size and shape of the parts, the desired plating thickness, production volume, and cost considerations.

9. Exploring the Use of Electroplating in Creating Decorative Finishes

Electroplating plays a significant role in creating a wide range of decorative finishes on various products, enhancing their aesthetic appeal and perceived value. By applying a thin layer of a precious or attractive metal, manufacturers can transform the appearance of less expensive base materials, creating products that are both visually appealing and cost-effective. Here are some examples of how electroplating is used for decorative purposes:

  • Jewelry: Electroplating is extensively used in the jewelry industry to create gold-plated, silver-plated, and rhodium-plated pieces. This allows for the production of affordable jewelry that mimics the look of solid gold or silver.

  • Watches: Watch cases, bands, and other components are often electroplated with gold, silver, or other metals to enhance their appearance and provide a luxurious finish.

  • Home Décor: Many decorative items for the home, such as picture frames, vases, lamp bases, and tableware, are electroplated to achieve a metallic finish. This can range from bright chrome to antique brass or brushed nickel.

  • Fashion Accessories: Belt buckles, buttons, handbag hardware, and other fashion accessories are often electroplated to add a touch of elegance and style.

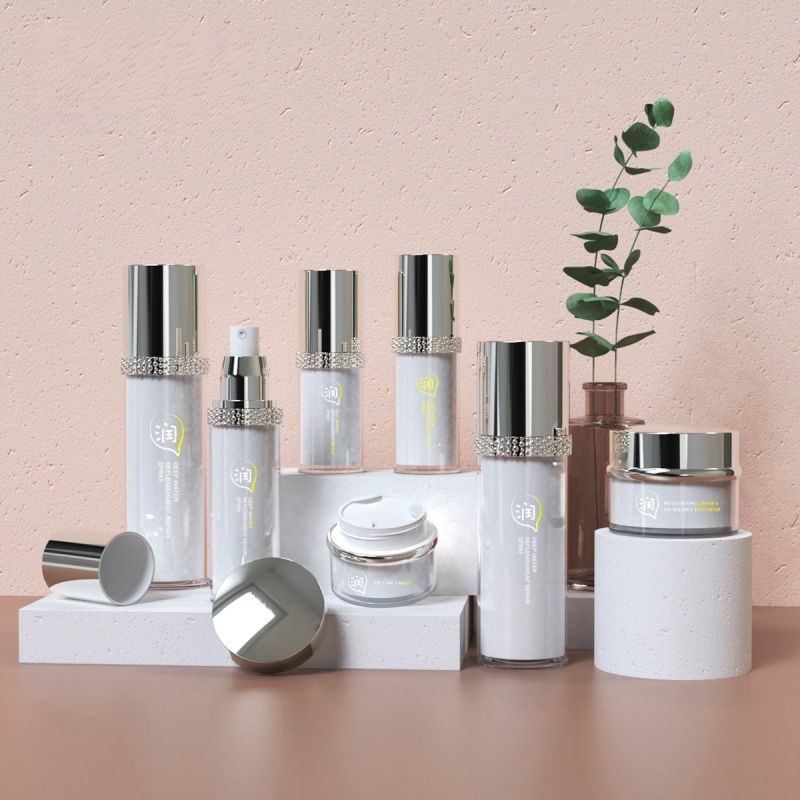

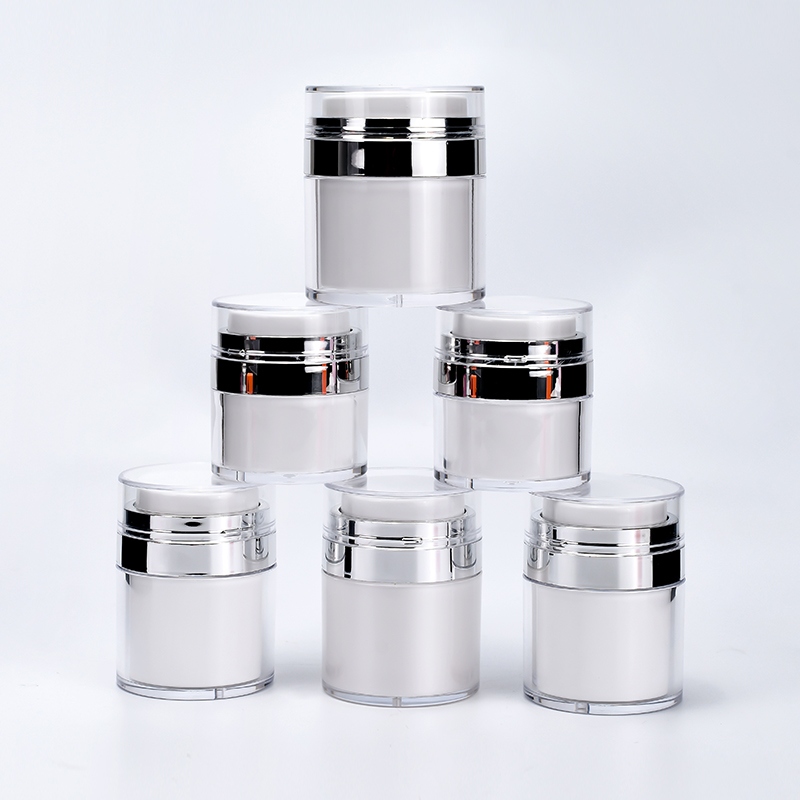

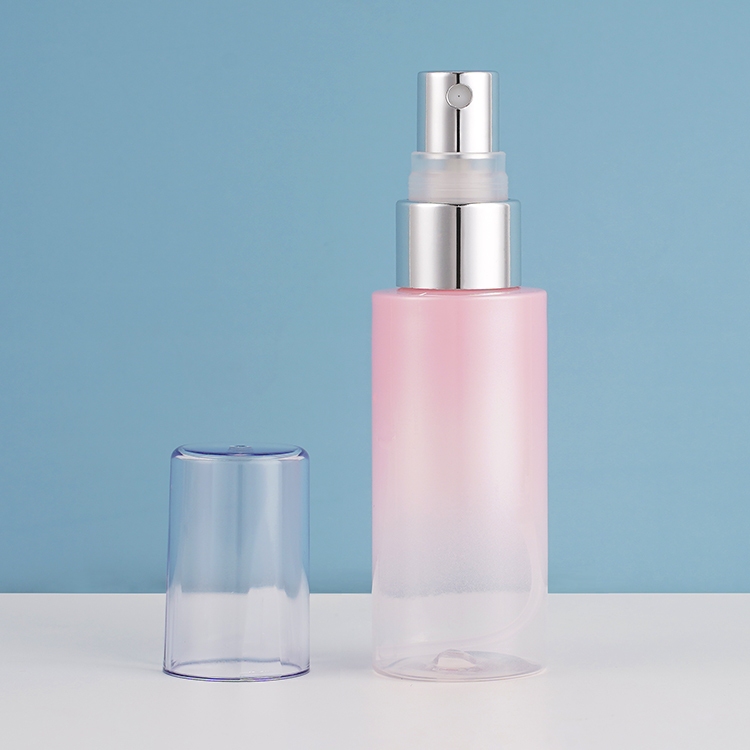

  • Cosmetic Packaging: In the cosmetics industry, electroplating is used to create visually appealing packaging for products like perfumes, creams, and lotions. Plated plastic containers can mimic the look of more expensive materials like glass or metal, adding a touch of luxury.

The choice of plating metal depends on the desired aesthetic, the target market, and the overall design concept.

10. How Does Electroplating Enhance the Functionality of Metal Parts?

Beyond its decorative applications, electroplating is a critical process for enhancing the functional properties of metal parts across various industries. By depositing a layer of another metal onto the substrate, electroplating can significantly improve the part's performance characteristics.

One of the most important functional benefits is corrosion resistance. Metals like zinc, nickel, and chromium provide excellent protection against rust and other forms of corrosion, extending the lifespan of the plated part. This is particularly crucial for components used in harsh environments, such as automotive parts, outdoor hardware, and marine applications. Electroplating can also enhance wear resistance. Hard metal coatings, such as those provided by hard chrome or electroless nickel plating, increase the surface hardness of the substrate, making it more resistant to abrasion, scratching, and wear. This is valuable for parts that are subject to friction or repeated use, such as tools, machine components, and hydraulic cylinders.

Property EnhancedPlating Metal(s)MechanismApplications
Corrosion ResistanceZinc, Nickel, Chromium, TinForms a barrier layer that protects the substrate from moisture, oxygen, and corrosive substances.Automotive parts, hardware, plumbing fixtures, outdoor equipment
Wear ResistanceHard Chrome, Electroless Nickel, NickelIncreases surface hardness, reduces friction, and resists abrasion.Tools, machine parts, hydraulic cylinders, molds, dies
Electrical ConductivityCopper, Silver, GoldProvides a highly conductive surface layer for efficient current flow.Electrical contacts, connectors, PCBs, busbars
SolderabilityTin, Silver, GoldImproves the ability of the substrate to be soldered, ensuring strong and reliable joints.Electronic components, PCBs
HardnessHard Chrome, NickelIncreases surface hardness, making the part more resistant to indentation and deformation.Molds, dies, cutting tools, machine parts
LubricityElectroless Nickel-PTFE, Molybdenum DisulfideReduces friction between moving parts, preventing wear and galling.Bearings, gears, pistons, engine components
Chemical ResistanceNickel, Gold, PlatinumProvides resistance to chemical attack from acids, alkalis, and other corrosive substances.Chemical processing equipment, laboratory instruments, medical devices
Heat ResistanceNickel, ChromiumImproves the ability of the substrate to withstand high temperatures without degradation or loss of properties.Engine components, exhaust systems, industrial equipment
Aesthetic AppealGold, Silver, Chrome, Nickel, BrassProvides a decorative finish, enhances the visual appearance, and increases perceived value.Jewelry, watches, home décor, fashion accessories, cosmetic packaging
BiocompatibilityGold, Platinum, TitaniumMakes the surface compatible with living tissue, reducing the risk of adverse reactions.Medical implants, surgical instruments

Summary

Here are 10 key takeaways from this article:

  1. Electroplating is a process that uses an electric current to deposit a thin layer of metal onto an object (substrate).

  2. The object to be plated is made the cathode (negatively charged), while the plating metal is the anode (positively charged) in an electrolytic cell.

  3. An electrolyte solution containing dissolved metal ions of the plating metal is used to conduct the electric current and provide the source of the plating material.

  4. When an electric current is applied, positively charged metal ions are attracted to the negatively charged substrate, where they are reduced and deposited as a metal coating.

  5. Electroless plating is a chemical process that deposits a metal coating without the use of an external electric current, often used as a first step when plating on plastic.

  6. Common plating metals include copper, nickel, chrome, gold, and silver, each offering unique properties in terms of appearance, corrosion resistance, conductivity, and wear resistance.

  7. Electroplating is widely used for both decorative and functional purposes across various industries, including automotive, electronics, aerospace, jewelry, plumbing, and medical devices.

  8. Choosing the right electroplating method depends on factors such as the substrate material, desired finish, functional requirements, production volume, and cost.

  9. Different techniques like rack plating, barrel plating, vibratory plating, and brush plating cater to specific part sizes, shapes, and production volumes.

  10. Electroplating enhances the properties of the substrate, providing benefits such as improved corrosion resistance, wear resistance, electrical conductivity, aesthetic appeal, and increased thickness.
