This comprehensive guide explores the fascinating process of electroplating plastic, a technique that allows non-conductive plastic materials to be coated with a layer of metal. We'll delve into the science behind this process, its various applications, and the advantages it offers. We will also discuss how to plate plastic, and the benefits of doing so. This article is worth reading for anyone curious about how everyday objects achieve a metallic look and feel, as well as for professionals in industries like automotive, electronics, and cosmetics who are seeking to enhance the appearance, durability, and functionality of their plastic products through innovative plating techniques.
Electroplating is a process that uses an electric current to reduce dissolved metal cations so that they form a thin, coherent metal coating on an electrode. In simpler terms, it's a way of applying a thin layer of metal onto the surface of an object, which can be made of metal, or in the case of our focus, plastic. The primary purpose of this technique is to alter the surface properties of an object, enhancing its appearance, durability, corrosion resistance, or other desired characteristics.
The electroplating process typically involves immersing the object to be plated (the substrate) into an electrolyte solution containing dissolved ions of the desired plating metal. This solution is often referred to as the plating bath. Two electrodes, an anode and a cathode, are also placed in the solution. When an electric current is passed through the circuit, the positively charged metal ions in the solution are attracted to the negatively charged substrate (cathode), where they are reduced and deposited as a thin, uniform metal coating. The anode, often made of the same metal being plated, replenishes the metal ions in the solution.
Electroplating plastic presents a unique challenge because, unlike metals, plastics are inherently non-conductive. This means that they do not readily conduct an electric current, which is essential for the standard electroplating process to work. To overcome this obstacle, the plastic surface must first be made conductive before electroplating can occur.
This typically involves a multi-step pre-treatment process. First, the plastic needs to be thoroughly cleaned and degreased to ensure proper adhesion of subsequent layers. Then, the plastic surface is often etched using a chemical solution, such as chromic acid. This etching process creates microscopic pores on the plastic surface, increasing its surface area and providing a better grip for the conductive layer. After etching, a conductive material, such as a specially formulated conductive paint or a thin layer of electroless nickel or copper, is applied to the plastic surface. This crucial step makes the plastic conductive, enabling it to act as the cathode in the electroplating process.
"Electrodepositing," also known as electroplating, is the core process by which a metal coating is applied to a substrate using an electric current. The process of “electrodepositing” metal on metal is different from the process of plating onto plastic. While the fundamental principles remain the same, the non-conductive nature of plastic necessitates additional preparatory steps. The process begins by immersing the plastic part, which has been made conductive through the pre-treatment steps mentioned earlier, into an electrolyte solution.
This solution contains dissolved ions of the desired plating metal, such as copper, nickel, chrome, gold, or silver. The plastic part acts as the cathode, while an anode made of the plating metal is also placed in the solution. When a direct current (DC) is applied, the positively charged metal ions are attracted to the negatively charged plastic surface. Through a process called reduction, these ions gain electrons and are deposited onto the plastic surface as a thin, uniform layer of metal. The thickness of the plating can be controlled by adjusting the current and the duration of the process.
Electroless plating, also known as autocatalytic plating, is a chemical process used to deposit a layer of metal onto a substrate without the use of an external electric current. This technique is particularly important in plastic electroplating, as it provides a method for applying the initial conductive layer onto the non-conductive plastic surface. The most common type of electroless plating used for this purpose is electroless nickel plating.
Electroless plating relies on a chemical reaction between the substrate and the plating solution. The plastic part is first sensitized and activated, often using a solution containing palladium and tin salts. This creates catalytic sites on the plastic surface. The part is then immersed in an electroless plating solution, which contains metal ions (e.g., nickel ions), a reducing agent, and other additives. The reducing agent reacts with the metal ions at the catalytic sites, causing them to be reduced and deposited onto the plastic surface as a thin, uniform metal coating. This initial metal layer provides the conductivity needed for subsequent electroplating steps.
While many types of plastic can be electroplated with proper preparation, some are more commonly used due to their specific properties and compatibility with the plating process. Here are a few of the most common plastics used for electroplating:
Acrylonitrile Butadiene Styrene (ABS): ABS is by far the most widely used plastic for electroplating. It offers a good balance of strength, rigidity, and dimensional stability. ABS also has a relatively low surface energy, which, after proper etching, allows for good adhesion of the metal plating. It's commonly found in automotive parts, electronic housings, and household appliances.
ABS/Polycarbonate (PC) Blends: These blends combine the strength and heat resistance of polycarbonate with the plating receptiveness of ABS. They are often used when higher impact resistance or temperature tolerance is needed.
Polypropylene (PP): While more challenging to plate than ABS, PP offers excellent chemical resistance and is used in applications where this property is critical.
Nylon (Polyamide): Nylon is a strong and durable plastic with good heat resistance. It can be plated for decorative or functional purposes, such as improving wear resistance.
The choice of plastic depends on the specific application, the desired properties of the finished part, and the plating process being used.
Plastic Type | Abbreviation | Properties | Common Applications | Electroplating Suitability |
---|---|---|---|---|
Acrylonitrile Butadiene Styrene | ABS | Strong, rigid, good dimensional stability, impact-resistant | Automotive parts, electronic housings, appliances, toys | Most commonly used plastic for electroplating due to its excellent plating receptiveness and good adhesion after etching |
ABS/Polycarbonate Blend | ABS/PC | Combines the strength and heat resistance of PC with the plating receptiveness of ABS | Applications requiring higher impact resistance or temperature tolerance | Suitable for electroplating, often used when ABS alone doesn't meet performance requirements |
Polypropylene | PP | Excellent chemical resistance, heat resistance, durable, lightweight | Chemical tanks, packaging, automotive parts, medical devices | More challenging to plate than ABS, requires specialized pre-treatment for good adhesion |
Nylon (Polyamide) | PA | Strong, durable, wear-resistant, good heat resistance | Gears, bearings, electrical connectors, automotive parts | Can be plated for decorative or functional purposes, requires careful surface preparation |
Polycarbonate | PC | High impact resistance, transparent, heat-resistant | Safety glasses, electronic components, automotive lenses | Can be plated, but adhesion can be challenging; often used in blends with ABS for improved plating receptiveness |
Polyethylene Terephthalate | PET | Strong, lightweight, good barrier properties, transparent | Beverage bottles, food containers, packaging films | Not typically electroplated due to poor adhesion; specialized techniques may be required |
High-Density Polyethylene | HDPE | Durable, chemical-resistant, moisture-resistant, opaque | Bottles, pipes, containers, toys | Generally not electroplated due to poor adhesion; specialized techniques may be required |
Low-Density Polyethylene | LDPE | Flexible, lightweight, good moisture resistance | Squeezable bottles, films, bags | Generally not electroplated due to poor adhesion; specialized techniques may be required |
Polyvinyl Chloride | PVC | Versatile, can be rigid or flexible, good chemical resistance | Pipes, construction materials, some packaging | Can be plated, but less common due to environmental and health concerns |
The process of electroplating plastic involves several key steps, each critical to achieving a high-quality, durable, and aesthetically pleasing metal finish. Here's a step-by-step overview:
Cleaning and Degreasing: The plastic part must be thoroughly cleaned to remove any dirt, oil, grease, or other contaminants that could interfere with adhesion.
Etching: The clean plastic part is immersed in an etching solution, typically a chromic acid bath. This process creates microscopic pores on the plastic surface, increasing its surface area and providing "tooth" for the subsequent layers to grip onto.
Neutralization: After etching, the part is rinsed and neutralized to remove any residual etching solution.
Catalyzing/Activating: The part is immersed in a solution containing palladium and tin salts. This step deposits a thin layer of catalytic material onto the etched plastic surface, which is essential for initiating the electroless plating process.
Electroless Plating: The catalyzed part is placed in an electroless plating bath, typically containing nickel or copper ions and a reducing agent. A chemical reaction occurs, depositing a thin, uniform layer of metal onto the plastic surface. This initial metal layer makes the part conductive.
Electroplating: Once the plastic is conductive, it can undergo standard electroplating. The part, now acting as the cathode, is immersed in an electroplating solution containing ions of the desired metal (e.g., copper, nickel, chrome, gold, or silver). An electric current is applied, causing the metal ions to migrate to the plastic part and deposit onto the electrolessly plated layer.
Rinsing and Drying: After each step, the part is thoroughly rinsed to remove any residual chemicals. After the final plating step, the part is rinsed and dried.
Optional Post-Plating: Depending on the desired finish and application, additional layers of metal may be electroplated, or other finishing processes like painting or lacquering may be applied.
This detailed process transforms a non-conductive plastic part into a product with a metallic finish that offers both aesthetic and functional benefits.
Electroplating onto plastic offers a unique combination of advantages that make it a valuable technique across various industries. Here are some key benefits:
Aesthetic Appeal: Electroplating allows for the creation of visually appealing metallic finishes on plastic parts. This can range from bright, reflective chrome to subtle, brushed nickel or even luxurious gold and silver plating. This enhances the perceived value and attractiveness of products.
Durability and Wear Resistance: The deposited metal layer provides a hard, durable surface that is resistant to scratching, abrasion, and wear. This extends the lifespan of the plastic part and maintains its appearance over time.
Corrosion Resistance: The metal coating acts as a barrier, protecting the underlying plastic from corrosion and degradation, particularly in harsh environments. This is especially important for applications like automotive trim and plumbing products.
Lightweight: Electroplated plastic parts retain the lightweight nature of plastic while gaining the look and many of the properties of metal. This is advantageous in applications where weight is a concern, such as in the automotive and aerospace industries.
Cost-Effectiveness: Electroplating plastic can be more cost-effective than manufacturing the entire part from solid metal, especially for complex shapes. It allows for the use of less expensive plastic materials while still achieving a high-end metallic finish.
Design Flexibility: Plastic is easily molded into intricate shapes, and electroplating allows for these complex designs to be coated with metal, opening up a wide range of design possibilities.
These advantages make electroplated plastics a popular choice in various sectors, including automotive, electronics, appliances, plumbing fixtures, and, of course, cosmetic packaging.
Plastic electroplating finds applications across a diverse range of industries, where the combination of plastic's lightweight and versatile nature with the aesthetic and functional benefits of a metal finish is desired. Here are some notable applications:
Automotive: One of the largest markets for plated plastics. Used for both exterior and interior components, including grilles, trim, emblems, door handles, and dashboards. The metal finish adds a premium look and feel while also providing durability and corrosion resistance.
Plumbing Fixtures: Faucets, showerheads, and other plumbing fixtures are often made from plated plastic. This provides the appearance and durability of metal at a lower cost and weight.
Appliances: Many household appliances incorporate electroplated plastic parts, such as knobs, buttons, trim, and logos. This enhances their appearance and provides a durable, easy-to-clean surface.
Electronics: Electroplated plastics are used in electronic devices for decorative purposes, such as bezels and trim, as well as for functional applications like EMI/RFI shielding.

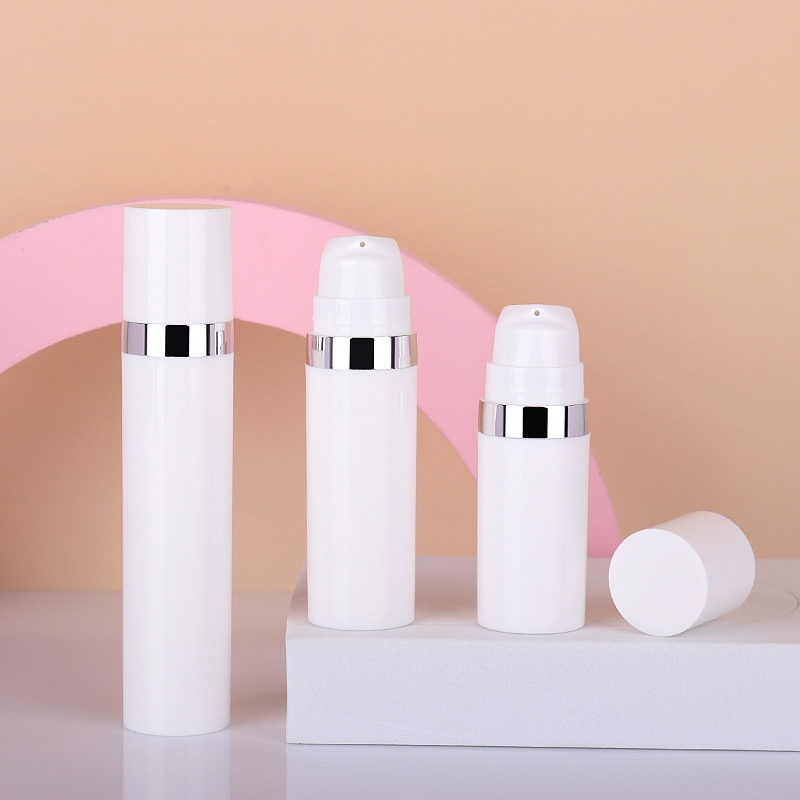

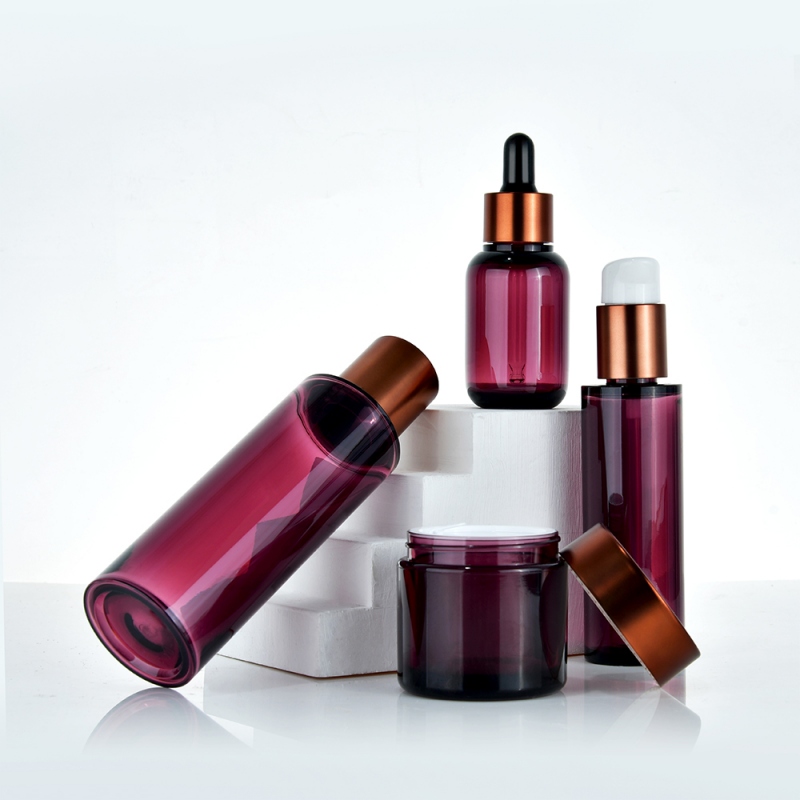

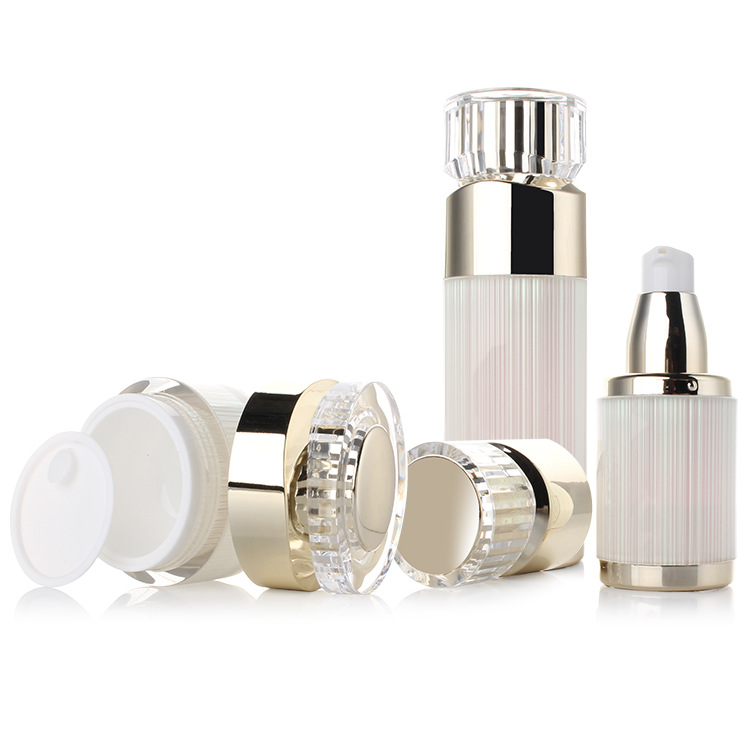

Cosmetics: In the cosmetic industry, electroplating is used to create visually appealing packaging for products like perfumes, creams, and lotions. Plated plastic containers can mimic the look of more expensive materials like glass or metal, adding a touch of luxury.
Radio Transmission Products: Due to its lightweight nature, plating plastic antennas is a way to make them durable and weather resistant.
These are just a few examples, and the applications of plastic electroplating continue to expand as technology advances and new uses are discovered.
Choosing the right plating method for your plastic part depends on several factors, including the desired finish, the functional requirements of the part, the type of plastic being used, and cost considerations. Here's a guide to help you make the right decision:
Determine the Desired Finish: What aesthetic are you aiming for? Do you need a bright, reflective finish like chrome, a more subdued look like brushed nickel, or a specific color like gold or copper? Different plating metals offer different appearances.
Consider Functional Requirements: Beyond aesthetics, consider what functional properties you need. Do you need enhanced wear resistance, corrosion protection, electrical conductivity, or heat resistance? For instance, nickel plating provides excellent corrosion resistance, while copper is highly conductive.
Evaluate the Plastic Material: Not all plastics are equally suitable for electroplating. ABS is the most common choice due to its excellent plating receptiveness, but other plastics like ABS/PC blends, polypropylene, and nylon can also be plated with proper preparation. Ensure that the plating process you choose is compatible with your plastic material.
Assess Production Volume and Cost: The scale of your production will influence the most cost-effective plating method. Electroless plating can be more economical for smaller runs, while electroplating is often preferred for high-volume production. Consider the initial setup costs, including tooling and equipment, as well as the ongoing costs of materials and labor.
Consult with Experts: Partnering with an experienced plating company like Sharretts Plating Company (SPC) can be invaluable in selecting the right method. They can assess your specific needs, recommend the most suitable plating process and metal, and provide guidance on design for manufacturability.
By carefully considering these factors, you can choose the optimal plating method to achieve the desired appearance, performance, and cost-effectiveness for your plastic part.
The field of plastic electroplating is continually evolving, driven by advancements in materials science, plating technologies, and growing demands for more sustainable and efficient processes. Here are some key trends shaping the future of this industry:
Environmentally Friendly Processes: There's a growing emphasis on developing more environmentally friendly plating processes. This includes reducing the use of hazardous chemicals like hexavalent chromium, developing more efficient rinsing techniques to minimize water usage, and improving waste treatment and recovery systems.
Advanced Pre-treatment Techniques: Innovations in pre-treatment methods are improving the adhesion and quality of plating on a wider range of plastics. This includes research into new etching solutions, plasma treatments, and other surface modification techniques.
New Plating Materials: The industry is exploring new plating materials beyond traditional metals like chrome, nickel, and copper. This includes the development of alloys with enhanced properties, as well as the use of more sustainable and less toxic alternatives.
Selective Plating: Techniques for selectively plating specific areas of a plastic part are becoming more sophisticated. This allows for greater design flexibility, reduced material usage, and the creation of parts with both conductive and non-conductive areas.
Integration with Other Technologies: Plastic electroplating is increasingly being integrated with other manufacturing processes, such as 3D printing and laser structuring, to create parts with complex geometries and integrated functionalities.
Increased Automation: Automation and robotics are playing a growing role in plating operations, improving efficiency, consistency, and quality control.
These trends are driving the industry towards more sustainable, efficient, and versatile plastic electroplating processes, enabling the creation of advanced products with enhanced performance and aesthetic appeal.
Here are 10 key takeaways from this article:
Electroplating is a process of coating a substrate, often plastic, with a thin layer of metal using an electric current.
Plating on plastic requires pre-treatment steps, including cleaning, etching, and applying a conductive layer, to enable electroplating.
Electroless plating is a chemical process used to deposit the initial conductive metal layer onto plastic without using an external current.
ABS is the most common plastic used for electroplating due to its excellent plating receptiveness, but other plastics like ABS/PC blends, PP, and nylon can also be plated.
The plastic electroplating process typically involves cleaning, etching, neutralization, catalyzing, electroless plating, electroplating, rinsing, drying, and optional post-plating.
Electroplating onto plastic offers advantages such as enhanced aesthetics, durability, wear resistance, corrosion resistance, and the ability to create lightweight parts with a metallic finish.
Plastic electroplating finds applications across various industries, including automotive, plumbing, appliances, electronics, cosmetics, and radio transmission products.
Choosing the right plating method depends on the desired finish, functional requirements, plastic material, production volume, and cost considerations.
Partnering with an experienced plating company like Sharretts Plating Company (SPC) can provide valuable expertise and guidance in selecting the optimal plating process.
Future trends in plastic electroplating include more environmentally friendly processes, advanced pre-treatment techniques, new plating materials, selective plating, integration with other technologies, and increased automation.
