This comprehensive guide explores the fascinating world of plating on plastic, also known as plastic electroplating. We'll uncover how this specialized process bridges the gap between the versatility of plastic and the desirable properties of metal, creating products that are both functional and aesthetically pleasing. This article is worth reading for anyone curious about the magic behind transforming ordinary plastic into shimmering, durable, and conductive objects. It's also a valuable resource for product designers, engineers, and manufacturers seeking to leverage the unique benefits of this technology across various industries.
Electroplating is a process that uses an electric current to reduce dissolved metal cations so that they form a thin coherent metal coating on an electrode. This means that electroplating is typically used to improve the appearance or durability of metal objects. The object to be plated is placed in a plating solution that contains dissolved ions of the plating metal. The object is made the cathode (negatively charged electrode), and a piece of the plating metal is made the anode (positively charged electrode). When an electric current is applied, the positively charged metal ions are drawn to the negatively charged object, where they are deposited as a thin layer.
However, electroplating plastic presents a unique challenge. Unlike metals, which are naturally conductive materials, plastics are insulators. They do not conduct electricity, which is a fundamental requirement for the standard electroplating process. Therefore, to electroplate plastic, the surface must first be made conductive. This involves a series of specialized pre-treatment steps that prepare the plastic surface to receive and adhere to a metal coating.
Making plastic conductive for electroplating involves a multi-stage process that transforms the non-conductive plastic surface into one that can carry an electric current. The process generally includes the following steps:
Cleaning and Degreasing: The plastic part must first be thoroughly cleaned to remove any dirt, oil, grease, or other contaminants that could interfere with adhesion. This often involves using detergents, solvents, or specialized cleaning solutions.
Etching: The clean plastic surface is then etched using a chemical solution, such as chromic acid. Etching creates microscopic pores or pits on the plastic surface. This increases the surface area and creates a rougher texture, which provides a better "tooth" or mechanical grip for the subsequent metal layers to adhere to.
Neutralization: After etching, the part is rinsed and neutralized to remove any residual etching solution. This step ensures that the etching process is stopped and that no chemicals interfere with the following steps.
Catalyzing/Activation: This is a critical step where the etched plastic surface is sensitized to receive a metal coating. The part is immersed in a solution containing palladium and tin salts. The palladium acts as a catalyst, initiating the deposition of metal in the next step.
Electroless Plating: The catalyzed plastic part is placed in an electroless plating bath. This solution contains metal ions (typically nickel or copper) and a reducing agent. A chemical reaction occurs, and the reducing agent causes the metal ions to be reduced and deposited onto the catalyzed plastic surface, forming a thin, uniform, and conductive metallic layer. This step is crucial as it transforms the non-conductive plastic into a conductive surface suitable for electroplating.
Once these pre-treatment steps are complete, the plastic part, now coated with a conductive layer of electroless nickel or copper, is ready for the standard electroplating process.
After the plastic part has been made conductive through electroless plating, it can undergo the standard electroplating process, similar to how metal objects are electroplated. The electroplating process for plastic involves the following steps:
Preparation: The now-conductive plastic part is thoroughly rinsed to remove any traces of the electroless plating solution. It is then mounted onto a rack or fixture that will hold it securely during the electroplating process and provide electrical contact.
Electroplating Bath: The rack with the plastic part is immersed in an electroplating bath, also known as the electroplating solution. This bath contains dissolved ions of the desired plating metal, such as copper, nickel, chrome, gold, or silver. The specific metal used depends on the desired finish and functional requirements.
Applying Electric Current: A power supply, typically a rectifier, is connected to the rack holding the plastic part (which acts as the cathode) and to an anode made of the plating metal. When a direct current (DC) is applied, the positively charged metal ions in the solution are attracted to the negatively charged plastic part.
Deposition: As the metal ions reach the plastic part, they gain electrons and are reduced to their metallic form. This causes them to deposit onto the conductive surface of the plastic, forming a thin, uniform layer of metal. The thickness of the plating can be controlled by adjusting the current and the duration of the process.
Rinsing and Drying: Once the desired plating thickness is achieved, the part is removed from the plating bath and thoroughly rinsed to remove any residual plating solution. It is then dried, often with the assistance of warm air blowers or ovens.
The result is a plastic part with a tightly bonded metal coating that provides the desired aesthetic and functional properties.
Plastic electroplating can utilize a variety of metals to achieve different finishes and functional properties. Some of the most common metals used include:
Copper: Copper is often used as an initial layer in plastic electroplating due to its excellent conductivity and adhesion properties. It provides a smooth, level base for subsequent plating layers. Copper can also be used as a final finish for decorative purposes or to enhance electrical conductivity.
Nickel: Nickel is a versatile plating metal that offers excellent corrosion resistance, wear resistance, and a bright, attractive appearance. It can be used as an undercoat to improve adhesion and corrosion protection or as a final finish for a silvery, slightly warm hue. Electroless nickel plating, in particular, is crucial for providing the initial conductive layer on plastic.
Chrome: Chrome plating is renowned for its hardness, durability, and brilliant, mirror-like finish. It is often used as the final layer in decorative plating, providing a highly reflective and aesthetically pleasing surface. Chrome also offers excellent corrosion and wear resistance.
Gold: Gold plating provides a luxurious, tarnish-resistant finish and is often used in jewelry, decorative items, and high-end cosmetic packaging. It also offers excellent electrical conductivity and is used in electronic applications.
Silver: Silver plating is known for its high electrical and thermal conductivity, making it valuable in electronic components and electrical contacts. It can also be used for decorative purposes, although it is more prone to tarnishing than gold.
These are just a few examples, and other metals like tin, palladium, brass, and various alloys can also be used in plastic electroplating depending on the specific requirements of the application.
Plating onto plastic offers a unique combination of benefits that make it a valuable technique across numerous industries. By combining the lightweight, versatile nature of plastic with the desirable properties of metal, this process creates products that are both functional and aesthetically pleasing. Here are some key advantages:
Lightweight: Plastic parts are significantly lighter than their all-metal counterparts. Electroplating a thin layer of metal onto plastic allows for the creation of products that have the look and feel of metal but without the added weight. This is particularly advantageous in industries like automotive and aerospace, where weight reduction is crucial for fuel efficiency and performance.
Cost-Effective: Plastics are generally less expensive than metals, especially precious metals like gold or platinum. Electroplating allows manufacturers to use a less expensive plastic substrate and still achieve a high-end metallic finish, reducing overall production costs.
Design Flexibility: Plastics can be easily molded into complex shapes and intricate designs that would be difficult or expensive to achieve with solid metal. Electroplating enables these complex plastic designs to be coated with metal, opening up a wide range of design possibilities.
Corrosion Resistance: Many metals used in electroplating, such as nickel and chrome, offer excellent corrosion resistance. By plating plastic with these metals, the resulting product becomes more resistant to rust, oxidation, and other forms of corrosion, extending its lifespan and maintaining its appearance.
Durability and Wear Resistance: The metal coating provides a hard, durable surface that is resistant to scratching, abrasion, and wear. This enhances the longevity of the plastic part and protects it from damage during handling and use.
Aesthetic Appeal: Electroplating allows for a wide range of decorative finishes, from bright and reflective to matte or brushed. This enhances the visual appeal of plastic products, giving them a more premium look and feel.
These advantages make plated plastics a popular choice in various applications, from automotive trim and plumbing fixtures to electronic components and cosmetic packaging.
Plastic electroplating finds applications across a diverse range of industries, where the combination of plastic's lightweight and versatile nature with the aesthetic and functional benefits of a metal finish is desired. Here are some notable applications:
Automotive: The automotive industry is one of the largest users of plated plastics. Both interior and exterior parts, such as grilles, trim, emblems, door handles, dashboards, and even wheels, are often electroplated to provide a durable, corrosion-resistant, and aesthetically pleasing finish. Chrome plating is particularly popular for creating a bright, reflective look.
Plumbing Fixtures: Many faucets, showerheads, and other plumbing products are made from plated plastic. This provides the appearance and durability of metal fixtures at a lower cost and weight. Chrome and nickel plating are commonly used in these applications.
Appliances: Household appliances often incorporate electroplated plastic components, such as knobs, buttons, trim, and logos. This enhances their appearance and provides a durable, easy-to-clean surface.
Electronics: Electroplated plastics are used in electronic devices for decorative purposes, such as bezels and trim, as well as for functional applications like EMI/RFI shielding.

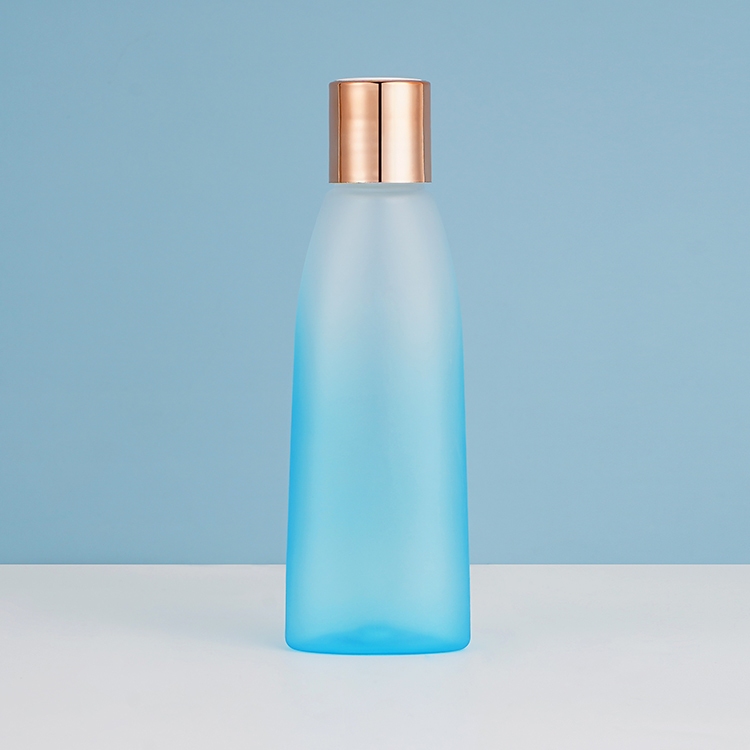

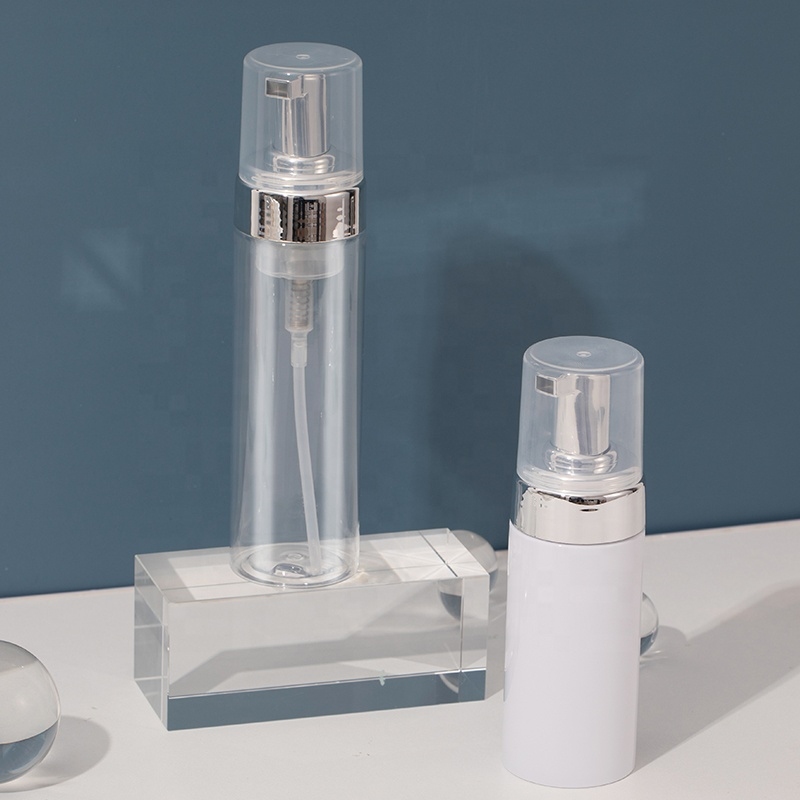

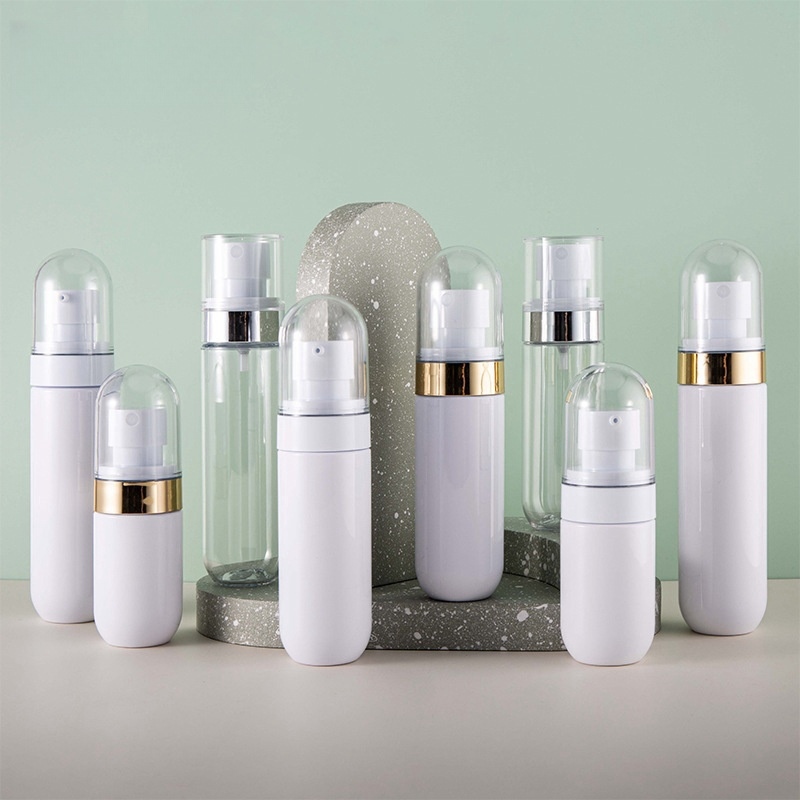

Cosmetics: In the cosmetic industry, electroplating is used to create visually appealing packaging for products like perfumes, creams, and lotions. Plated plastic containers can mimic the look of more expensive materials like glass or metal, adding a touch of luxury.
Radio Transmission Products: Due to their lightweight nature, plating plastic antennas is a way to make them durable and weather-resistant.
These are just a few examples, and the applications of plastic electroplating continue to expand as technology advances and new uses are discovered.
Choosing the right plastic material for electroplating is crucial for achieving a high-quality, durable, and aesthetically pleasing finish. Not all plastics are equally suitable for plating, and the choice depends on several factors:
Plating Receptiveness: The most important factor is the plastic's ability to be effectively pre-treated and plated. Acrylonitrile butadiene styrene (ABS) is the most commonly used plastic for electroplating due to its excellent plating receptiveness. Its amorphous structure allows for effective etching, which creates a strong mechanical bond between the plastic substrate and the metal coating.
Dimensional Stability: The plastic should be able to maintain its shape and dimensions throughout the plating process, which involves exposure to various chemicals and temperature changes. ABS and ABS/PC blends are known for their good dimensional stability.
Chemical Resistance: The plastic must be able to withstand the chemicals used in the pre-treatment and plating processes without degrading or deforming.
Mechanical Properties: Consider the required strength, impact resistance, and flexibility of the finished part. For applications requiring high strength, blends of ABS with polycarbonate (PC) might be preferred.
Cost: The cost of the plastic material is also a consideration, especially for high-volume applications. ABS is generally a cost-effective option, while specialized engineering plastics may be more expensive.
Consulting with a reputable plating company, like Sharretts Plating Company, can provide valuable guidance in selecting the most appropriate plastic material for your specific application and plating requirements.
While plating on plastic offers numerous advantages, it also presents certain challenges and limitations that need to be considered:
Adhesion: Achieving a strong and durable bond between the plastic substrate and the metal coating can be challenging. Plastics have inherently low surface energy, making it difficult for metals to adhere to them. The pre-treatment process, particularly etching, is crucial for creating a surface that promotes adhesion, but it needs to be carefully controlled to avoid damaging the plastic.
Thermal Expansion Mismatch: Plastics and metals have different coefficients of thermal expansion, meaning they expand and contract at different rates when exposed to temperature changes. This can create stress at the interface between the plastic and the metal coating, potentially leading to cracking, peeling, or delamination over time, especially if the plated part is subjected to temperature fluctuations.
Limited Plastic Choices: Not all plastics are suitable for electroplating. ABS and ABS/PC blends are the most common choices, but even within these categories, specific grades are formulated for plating. The range of plastics that can be reliably plated is narrower compared to the vast array of plastics available for other applications.
Environmental Concerns: Some of the chemicals used in the traditional plating process, such as hexavalent chromium used in chrome plating, are hazardous and subject to strict environmental regulations. The industry is moving towards more environmentally friendly alternatives, but these can sometimes be more expensive or less effective.
Cost: While plating on plastic can be more cost-effective than using solid metal, the pre-treatment steps and specialized processes involved can still add to the overall cost, particularly for smaller production runs.
Despite these challenges, advancements in plating technology, pre-treatment methods, and materials science are continually improving the quality, durability, and range of applications for plated plastics.
Electroless plating plays a crucial role in preparing plastic for electroplating by depositing an initial conductive layer onto the non-conductive plastic surface. This process, also known as chemical plating, relies on an autocatalytic chemical reaction rather than an external electric current to deposit the metal coating. Here's a simplified overview of how it works:
Cleaning and Etching: The plastic part undergoes thorough cleaning and etching, similar to the pre-treatment for standard electroplating. This creates a clean, microscopically rough surface for better adhesion.
Activation: The etched surface is activated using a solution that typically contains palladium and tin salts. The palladium ions act as catalysts for the subsequent electroless plating reaction.
Electroless Plating Bath: The activated plastic part is immersed in an electroless plating solution. This solution contains metal ions (commonly nickel or copper), a reducing agent (such as hypophosphite for nickel or formaldehyde for copper), complexing agents, stabilizers, and buffers.
Chemical Reaction: The reducing agent reacts with the metal ions in the solution. At the catalytic sites on the plastic surface (where palladium was deposited), this reaction causes the metal ions to be reduced to their metallic form. This results in the deposition of a thin, uniform layer of metal onto the plastic surface.
Autocatalytic Process: Once the initial layer of metal is deposited, it acts as a catalyst for the continued deposition of metal from the solution. This autocatalytic process allows the metal layer to build up to the desired thickness.
The most commonly used electroless plating processes for preparing plastics are electroless nickel and electroless copper. Electroless nickel plating, in particular, is favored for its uniformity, corrosion resistance, and ability to provide a good base for subsequent electroplating.
| Process Stage | Description | Purpose |
|---|---|---|
| Cleaning | Removal of dirt, oil, grease, and other contaminants from the plastic surface using detergents, solvents, or alkaline cleaners. | Ensure proper adhesion of subsequent layers. |
| Etching | Chemical treatment (often with chromic acid) to create microscopic pores and roughen the plastic surface. | Increase surface area and create mechanical interlocking sites for better adhesion of the conductive layer. |
| Neutralization | Removal of residual etching solution using a neutralizing agent. | Stop the etching reaction and prepare the surface for the next step. |
| Activation/Catalyzing | Immersion in a solution containing palladium and tin salts, depositing a thin layer of catalytic palladium on the etched surface. | Create catalytic sites that initiate and sustain the electroless plating reaction. |
| Electroless Plating | Immersion in an electroless plating bath containing metal ions (e.g., nickel or copper) and a reducing agent. A chemical reaction deposits a uniform layer of metal onto the catalyzed surface, making it conductive. | Provide an initial conductive layer that allows for subsequent electroplating. |
| Rinsing | Thorough rinsing with water after each step. | Remove residual chemicals and prevent contamination of subsequent baths. |
| Drying | Drying the part after the final rinse. | Prepare the now conductive plastic part for the electroplating process. |
The field of plastic electroplating is continually evolving, driven by advancements in materials science, plating technologies, and growing demands for more sustainable and efficient processes. Some key trends shaping the future of this industry include:
Environmentally Friendly Processes: There's a strong push towards developing and adopting more environmentally friendly plating processes. This includes reducing or eliminating the use of hazardous chemicals like hexavalent chromium, minimizing water usage through closed-loop systems, and improving waste treatment and recovery methods.
Advanced Pre-treatment Techniques: Research is focused on developing new and improved pre-treatment methods that enhance adhesion and allow for the plating of a wider range of plastics. This includes exploring techniques like plasma treatment, laser etching, and the use of more environmentally friendly etching solutions.
New Plating Materials: The industry is exploring new plating materials beyond traditional metals. This includes the development of alloys with enhanced properties, such as improved corrosion resistance, wear resistance, or unique aesthetic finishes. There's also growing interest in using more sustainable and less toxic plating materials.
Selective Plating: Techniques for selectively plating specific areas of a plastic part are becoming more sophisticated and precise. This allows for greater design flexibility, reduced material usage, and the creation of parts with both conductive and non-conductive areas on the same component.
Integration with Other Technologies: Plastic electroplating is increasingly being integrated with other manufacturing technologies, such as 3D printing (additive manufacturing) and laser structuring. This enables the creation of highly customized parts with complex geometries and integrated functionalities. For example, 3D-printed plastic parts can be electroplated to enhance their strength, durability, and appearance.
Increased Automation: Automation and robotics are playing a growing role in plating operations, improving efficiency, consistency, and quality control. Automated plating lines can reduce labor costs, minimize human error, and provide more precise control over the plating process.
These trends are driving the industry towards more sustainable, efficient, and versatile plastic electroplating processes that can meet the evolving needs of various industries, from automotive and electronics to consumer goods and medical devices.
Here are 10 key takeaways from this article:
Electroplating is a process that uses an electric current to deposit a thin layer of metal onto a substrate, which can be plastic if properly prepared.
Plating on plastic requires making the plastic surface conductive, typically through cleaning, etching, catalyzing, and electroless plating.
Electroless plating is a chemical process that deposits a metal coating (often nickel or copper) without an external current, creating a conductive layer on the plastic.
Acrylonitrile butadiene styrene (ABS) is the most common plastic used for electroplating due to its plating receptiveness, but other plastics like ABS/PC blends, PP, and nylon can also be plated.
The plastic electroplating process generally involves cleaning, etching, neutralization, catalyzing, electroless plating, electroplating, rinsing, and drying.
Electroplating onto plastic offers advantages like creating lightweight parts with metallic finishes, cost-effectiveness, design flexibility, corrosion resistance, durability, and enhanced aesthetic appeal.
Common applications of plastic electroplating include automotive parts, plumbing fixtures, appliances, electronics, cosmetics packaging, and radio transmission products.
Choosing the right plating method depends on the desired finish, functional requirements, plastic material, production volume, and cost.
Different electroplating techniques include rack plating, barrel plating, vibratory plating, and brush plating, each suited for different part sizes and shapes.
Future trends in plastic electroplating focus on environmentally friendly processes, advanced pre-treatment techniques, new plating materials, selective plating, integration with other technologies, and increased automation.
