This comprehensive guide explores the fascinating world of plastic electroplating, a process that combines the versatility of plastic with the desirable properties of metal. We'll delve into the intricacies of plating on plastic, examining how non-conductive plastic materials are transformed into conductive substrates ready for metal plating. This article is worth reading for anyone seeking to understand the science behind this innovative technique, its wide-ranging applications across various industries, and the benefits it offers in terms of aesthetics, durability, and functionality. From product designers to manufacturers to curious consumers, this guide provides valuable insights into the transformative power of electroplating plastic.

1. What is Electroplating and Why is it Used on Plastic?

Electroplating is the process of depositing a thin layer of metal onto the surface of another metal, or in this case, a plastic substrate. This is achieved by using an electric current to reduce dissolved metal cations in a plating solution, causing them to form a coherent metal coating on the substrate. The object to be plated is made the cathode (negatively charged electrode) in an electrolytic cell, while the plating metal is typically the anode (positively charged electrode).

Plating on plastics, also called plastic electroplating, has become increasingly popular due to the unique combination of advantages it offers. Plastic, in its natural state, is a non-conductive material. By applying a metal coating through electroplating, the plastic part gains the desirable properties of metal, such as electrical conductivity, durability, wear resistance, and corrosion resistance, while retaining the lightweight, versatile, and cost-effective nature of plastic. This process allows for enhanced functionality and an improved appearance, opening up a wide range of applications across various industries.

2. How Does the Electroplating Process Work?

The electroplating process uses an electric current to create a metal coating on a substrate. The process of plating metal onto plastic is different than plating metal onto metal. The object you want to plate will serve as the cathode in the process. The anode is often made from the metal that you want to use for plating. For example, if you are looking to create a gold plating, the anode would be made of gold. Both the anode and the cathode are submerged in a specially formulated electrolyte solution. This solution contains dissolved ions of the plating metal.

A power source, such as a rectifier, provides a direct current (DC) to the anode and cathode. When the current is applied, the positively charged metal ions in the solution are attracted to the negatively charged object (the cathode). As these ions come into contact with the substrate, they gain electrons and are reduced to their metallic form. This results in the deposition of a thin, uniform layer of metal onto the substrate's surface. The anode, made of the plating metal, gradually dissolves into the electrolyte solution, replenishing the metal ions that are being deposited onto the cathode. The thickness of the metal coating can be controlled by adjusting the current and the duration of the electroplating process.

3. What is Electroless Plating and Why is it Essential for Plating on Plastic?

Electroless plating is a crucial step in the process of electroplating onto plastic. Unlike electroplating, which requires an electric current, electroless plating is an autocatalytic chemical process that deposits a metal coating onto a substrate without the use of external electrical power. This is particularly important for plating on plastics because plastics are non-conductive and cannot be directly electroplated.

Electroless plating typically involves immersing the plastic substrate in a series of chemical baths. The first step is usually cleaning and etching the surface to improve adhesion. Then, the plastic is sensitized and activated, often using a solution containing palladium and tin salts, which creates catalytic sites on the surface. Finally, the plastic part is placed in an electroless plating solution containing metal ions (commonly nickel or copper) and a reducing agent. A chemical reaction occurs at the catalytic sites, reducing the metal ions to their metallic form and depositing them onto the plastic surface. This creates a thin, uniform, and conductive metal layer, which is essential for subsequent electroplating steps.

4. Step-by-Step: The Plastic Electroplating Process

The plastic electroplating process is a multi-stage procedure that transforms a non-conductive plastic part into one with a durable and attractive metal coating. Here's a step-by-step breakdown:

1. Cleaning and Degreasing: The plastic part is thoroughly cleaned to remove any dirt, oil, grease, or other contaminants that could interfere with adhesion.

2. Etching: The clean plastic surface is etched using a chemical solution, often chromic acid-based. This creates microscopic pores or pits on the surface, increasing the surface area and providing a mechanical "grip" for the subsequent metal layers.

3. Neutralization: After etching, the part is rinsed and neutralized to remove any residual etching solution and stop the etching process.

4. Catalyzing/Activation: The etched plastic part is immersed in a solution containing palladium and tin salts. This step deposits a thin layer of catalytic palladium on the surface, which is essential for initiating the electroless plating reaction.

5. Electroless Plating: The catalyzed part is placed in an electroless plating bath, typically containing nickel or copper ions and a reducing agent. A chemical reaction occurs, depositing a thin, uniform layer of metal (electroless nickel or copper) onto the plastic surface. This makes the plastic part conductive.

6. Electroplating: The now-conductive plastic part undergoes standard electroplating. It is made the cathode in an electrolytic cell, and the desired plating metal (e.g., copper, nickel, chrome, gold) serves as the anode. An electric current is passed through the cell, causing metal ions from the plating solution to deposit onto the plastic part, building up the desired metal coating thickness.

7. Rinsing and Drying: After each step, the part is thoroughly rinsed to remove any residual chemicals. After the final plating step, the part is rinsed and dried.

8. Post-Plating (Optional): Depending on the desired finish and application, additional layers of metal may be electroplated, or other finishing processes like polishing, lacquering, or painting may be applied.

This detailed process ensures a strong bond between the plastic substrate and the metal coating, resulting in a durable and high-quality finish.

5. What are the Most Common Plastics Used in Electroplating?

While many types of plastic can be electroplated with proper preparation, some are more commonly used due to their specific properties and compatibility with the plating process. Here are a few of the most common plastics used for electroplating:

• Acrylonitrile Butadiene Styrene (ABS): ABS is by far the most widely used plastic for electroplating. It offers a good balance of strength, rigidity, and dimensional stability. Its amorphous structure allows for effective etching, which creates a strong mechanical bond between the plastic substrate and the metal coating. It's commonly found in automotive parts, electronic housings, and household appliances.

• ABS/Polycarbonate (PC) Blends: These blends combine the strength and heat resistance of polycarbonate with the plating receptiveness of ABS. They are often used when higher impact resistance or temperature tolerance is needed.

• Polypropylene (PP): While more challenging to plate than ABS, PP offers excellent chemical resistance and is used in applications where this property is critical.

• Nylon (Polyamide): Nylon is a strong and durable plastic with good heat resistance. It can be plated for decorative or functional purposes, such as improving wear resistance.

The choice of plastic depends on the specific application, the desired properties of the finished part, and the plating process being used.

6. What are the Benefits of Electroplating Plastic Parts?

Electroplating plastic parts offers a multitude of benefits that make it a popular choice across various industries. Here are some key advantages:

• Aesthetic Enhancement: Electroplating provides a wide range of decorative finishes, including bright chrome, satin nickel, gold, copper, and more. This allows for the creation of visually appealing products that mimic the look of solid metal at a fraction of the cost and weight.

• Increased Durability: The metal coating deposited through electroplating significantly enhances the durability of the plastic part. It provides a hard, wear-resistant surface that can withstand scratching, abrasion, and general wear and tear, extending the product's lifespan.

• Corrosion Protection: Many plating metals, particularly nickel and chrome, offer excellent corrosion resistance. The metal layer acts as a barrier, protecting the underlying plastic from moisture, chemicals, and other corrosive elements.

• Electrical Conductivity: Electroplating can impart electrical conductivity to non-conductive plastic surfaces. This is particularly useful in electronic applications, such as EMI/RFI shielding and creating conductive pathways on circuit boards.

• Lightweight: Electroplated plastic parts retain the lightweight advantage of plastic while gaining the desirable properties of metal. This is particularly beneficial in industries like automotive and aerospace, where weight reduction is crucial for fuel efficiency and performance.

• Cost-Effectiveness: Using plastic as a substrate and plating it with a thin layer of metal is often more cost-effective than manufacturing the entire part from solid metal. This is especially true for complex shapes that are easier and cheaper to mold from plastic.

These benefits make electroplated plastics a versatile solution for enhancing both the appearance and functionality of a wide range of products.

7. What are the Common Applications of Plated Plastics?

Plated plastics are used extensively across numerous industries due to their unique combination of properties. Here are some common applications:

• Automotive: The automotive industry is a major consumer of electroplated plastics. Both interior and exterior parts, such as grilles, trim, emblems, door handles, dashboards, and even wheels, are often plated to provide a durable, corrosion-resistant, and aesthetically pleasing finish.

• Plumbing Fixtures: Faucets, showerheads, and other plumbing products are often made from plated plastic. This provides the appearance and durability of metal fixtures at a lower cost and weight.

• Appliances: Many household appliances incorporate electroplated plastic components, such as knobs, buttons, trim, and logos. This enhances their appearance and provides a durable, easy-to-clean surface.

• Electronics: Electroplated plastics are used in electronic devices for decorative purposes, such as bezels and trim, as well as for functional applications like EMI/RFI shielding.

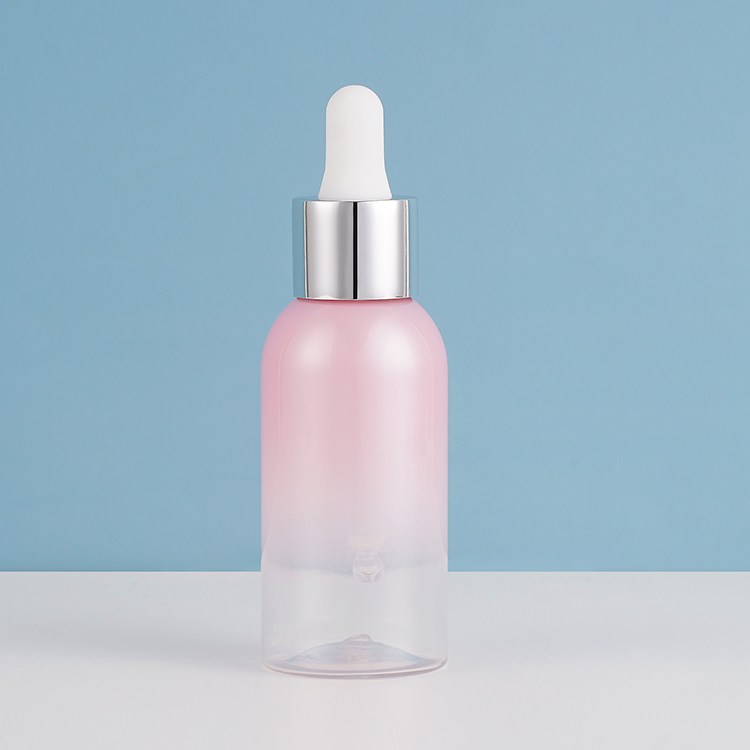

• Cosmetics: In the cosmetic industry, electroplating is used to create visually appealing packaging for products like perfumes, creams, and lotions. Plated plastic containers can mimic the look of more expensive materials like glass or metal, adding a touch of luxury.

• Radio Transmission Products: Due to their lightweight nature, plating plastic antennas is a way to make them durable and weather-resistant while maintaining their functionality.

These are just a few examples, and the applications of plastic electroplating continue to expand as technology advances and new uses are discovered.

8. How to Choose the Right Electroplating Process for Your Needs

Selecting the right electroplating process for your specific needs requires careful consideration of several factors:

1. Substrate Material: The type of plastic you're using is a primary consideration. ABS is the most common plastic for plating due to its excellent plating receptiveness, but other plastics like ABS/PC blends, PP, and nylon can also be plated with proper preparation. Ensure the plating process is compatible with your chosen plastic.

2. Desired Finish: What appearance are you aiming for? Different plating metals offer different aesthetics. Chrome provides a bright, reflective finish, while nickel can offer a more subdued, satin look. Gold and silver plating are used for luxury items.

3. Functional Requirements: Beyond aesthetics, consider the functional properties you need. Do you need enhanced wear resistance, corrosion protection, electrical conductivity, or heat resistance? For instance, nickel plating provides excellent corrosion resistance, while copper is highly conductive.

4. Part Size and Geometry: The size and complexity of your plastic part will influence the choice of plating method. Rack plating is suitable for larger parts or those with complex shapes, while barrel plating is more efficient for large volumes of small parts.

5. Production Volume: How many parts do you need to plate? Electroless plating can be more economical for smaller runs, while electroplating is often preferred for high-volume production.

6. Budget: Different plating metals and processes have varying costs. Consider the initial setup costs, including tooling and equipment, as well as the ongoing costs of materials, labor, and waste disposal.

Consulting with an experienced plating company like Sharretts Plating Company (SPC) can be invaluable in selecting the right process. They can assess your specific needs, recommend the most suitable plating method and metal, and provide guidance on design for manufacturability. Contact us to learn more about plating.

9. What is the Role of Electroless Plating in the Plastic Electroplating Process?

Electroless plating plays a vital role in the plastic electroplating process as it provides the crucial initial conductive layer on the non-conductive plastic surface. This step is essential because electroplating requires the substrate to be electrically conductive, and plastics, in their natural state, are insulators. Electroless plating, also known as autocatalytic plating, is a chemical process that does not require an external electric current.

The most commonly used metals for electroless plating are nickel and copper. The process typically involves the following steps:

1. Cleaning and Etching: The plastic surface is thoroughly cleaned and then etched to create microscopic pores, increasing the surface area and promoting adhesion.

2. Activation: The etched surface is activated or catalyzed by depositing a thin layer of a catalytic material, usually palladium, onto the surface.

3. Electroless Plating Bath: The activated plastic part is immersed in an electroless plating solution containing metal ions (nickel or copper), a reducing agent, complexing agents, stabilizers, and buffers.

4. Chemical Deposition: A chemical reaction occurs between the reducing agent and the metal ions at the catalyzed surface. This reaction reduces the metal ions to their metallic state, causing them to deposit onto the plastic surface.

5. Autocatalytic Process: Once a thin layer of metal is deposited, it acts as a catalyst for the continued deposition of metal from the solution. This allows the metal layer to build up to the desired thickness.

The resulting thin, uniform, and conductive metal layer provides the necessary foundation for subsequent electroplating steps.

10. Exploring the Future of Plastic Electroplating: Trends and Innovations

The field of plastic electroplating is continually evolving, driven by advancements in materials science, plating technologies, and growing demands for more sustainable and efficient processes. Here are some key trends shaping the future of this industry:

• Environmentally Friendly Processes: There's a strong push towards developing and adopting more environmentally friendly plating processes. This includes reducing or eliminating the use of hazardous chemicals like hexavalent chromium, minimizing water usage through closed-loop systems, and improving waste treatment and recovery methods. Companies like Sharretts Plating are leading the way in implementing these greener practices.

• Advanced Pre-treatment Techniques: Research is focused on developing new and improved pre-treatment methods that enhance adhesion and allow for the plating of a wider range of plastics. This includes exploring techniques like plasma treatment, laser etching, and the use of more environmentally friendly etching solutions.

• New Plating Materials: The industry is exploring new plating materials beyond traditional metals. This includes the development of alloys with enhanced properties, such as improved corrosion resistance, wear resistance, or unique aesthetic finishes. There's also growing interest in using more sustainable and less toxic plating materials.

• Selective Plating: Techniques for selectively plating specific areas of a plastic part are becoming more sophisticated and precise. This allows for greater design flexibility, reduced material usage, and the creation of parts with both conductive and non-conductive areas on the same component.

• Integration with Other Technologies: Plastic electroplating is increasingly being integrated with other manufacturing technologies, such as 3D printing (additive manufacturing) and laser structuring. This enables the creation of highly customized parts with complex geometries and integrated functionalities. For example, 3D-printed plastic parts can be electroplated to enhance their strength, durability, and appearance.

• Increased Automation: Automation and robotics are playing a growing role in plating operations, improving efficiency, consistency, and quality control. Automated plating lines can reduce labor costs, minimize human error, and provide more precise control over the plating process.

These trends are driving the industry towards more sustainable, efficient, and versatile plastic electroplating processes that can meet the evolving needs of various industries, from automotive and electronics to consumer goods and medical devices.

Summary

Here are 10 key takeaways from this article:

1. Electroplating is a process that uses electricity to deposit a thin layer of metal onto a plastic substrate, enhancing its properties and appearance.

2. Plating on plastic requires a pre-treatment process, including cleaning, etching, and electroless plating, to make the non-conductive plastic surface conductive.

3. Electroless plating is a chemical process that deposits a metal coating (often nickel or copper) without an external current, creating the foundation for electroplating.

4. Acrylonitrile butadiene styrene (ABS) is the most common plastic used for plating due to its excellent plating receptiveness, but other plastics like ABS/PC, PP, and nylon can also be plated.

5. The plastic electroplating process typically involves cleaning, etching, neutralization, catalyzing, electroless plating, electroplating, rinsing, drying, and optional post-plating.

6. Electroplating onto plastic offers benefits like enhanced aesthetics, increased durability, corrosion resistance, electrical conductivity, and cost-effectiveness compared to using solid metal.

7. Common applications of plated plastics include automotive parts, plumbing fixtures, appliances, electronics, cosmetics packaging, and radio transmission products.

8. Choosing the right plating method depends on the desired finish, functional requirements, plastic material, production volume, and budget.

9. Different electroplating techniques, such as rack plating, barrel plating, vibratory plating, and brush plating, cater to specific part sizes, shapes, and production volumes.

10. Future trends in plastic electroplating include environmentally friendly processes, advanced pre-treatment techniques, new plating materials, selective plating, integration with other technologies, and increased automation.
