This comprehensive finish guide demystifies the world of cap and neck finishes, providing essential knowledge for selecting the right closure for your bottles. Understanding neck finish dimensions is crucial for ensuring a secure and functional fit between the closure and the bottle neck. We'll explore various thread types, bottle neck finishes, and how they impact the closure's ability to seal and dispense effectively. Whether you're working with plastic or glass containers, this article will equip you with the information needed to navigate the complexities of neck finishes and choose the appropriate bottle and cap combination for your product. It is worth reading for anyone involved in packaging, from product developers to manufacturers, who need to make informed decisions about closures and bottle neck compatibility.
A neck finish refers to the configuration of the bottle neck that allows a cap or closure to be attached. It encompasses the thread design, diameter, and height of the neck, which collectively determine the type of closure that can be used with a particular bottle. The neck finish is a critical aspect of packaging design because it directly impacts the compatibility between the bottle and cap, ensuring a secure seal that prevents leaks, maintains product freshness, and protects the contents from contamination.
The importance of a proper neck finish cannot be overstated. An ill-fitting closure can lead to a range of problems, including product leakage, spoilage, and even safety hazards. For instance, if a bottle cap does not properly engage with the bottle neck threads, the product may leak during transportation or use, damaging other goods and potentially causing harm to consumers. Moreover, a compromised seal can allow air or moisture to enter the bottle, degrading the product and shortening its shelf life. Therefore, understanding and selecting the appropriate neck finish is essential for any product that relies on a bottle and closure system.
Neck finish dimensions are crucial for determining the compatibility between a bottle and its closure. These dimensions are typically defined by four key measurements:
| Measurement | Abbreviation | Description |
|---|---|---|
| Thread Diameter | T | The outside diameter of the thread, measured from one side of the neck to the other, across the outermost points of the threads. |
| Neck Diameter | E | The diameter of the neck, measured from one side of the neck to another to determine the finish to the top edge, at the root of the thread (where the thread base meets the neck). |
| Inner Diameter | I | The diameter of the inside of the neck. |
| Height of Neck Finish | H | The height of the neck finish, measured from the top of the neck to the point where the diameter (T) intersects the shoulder of the bottle. |
The thread diameter (T) is measured from one side of the neck to the other, including the outermost portion of the threads. The neck diameter (E) is measured similarly, but it represents the diameter of the neck at the base of the threads, excluding the thread thickness. The height of the neck finish (H) is measured from the top of the neck to the point where the diameter (T) intersects the shoulder of the bottle. Finally, the inner diameter (I) measures the opening of the neck. In other words, from one side of the inner wall to the other side of the inner wall.
Thread specifications, often represented by a series of numbers, provide essential information about the neck finish dimensions and thread style. A typical neck finish designation, such as 28-410, consists of two numbers. The first number refers to the diameter of the bottle neck in millimeters, measured across the outermost threads (T dimension). The second number indicates the thread style and is based on standards set by the Glass Packaging Institute (GPI) or the Society of the Plastics Industry (SPI).
For example, in a 28-410 neck finish, the "28" indicates that the diameter of the bottle neck, including the threads, is 28 millimeters. The "410" refers to a specific GPI thread finish and refers to the height of the neck finish and number of thread turns around the bottle neck. In this case, it signifies a continuous thread with approximately 1.5 thread turns. Other common thread finishes include 400 (one thread turn), 415 (two thread turns), and 430 (a taller neck finish often used for dispensing closures). For a bottle with a 28-410 neck finish, you will need a bottle cap that has a 28-410 thread finish.

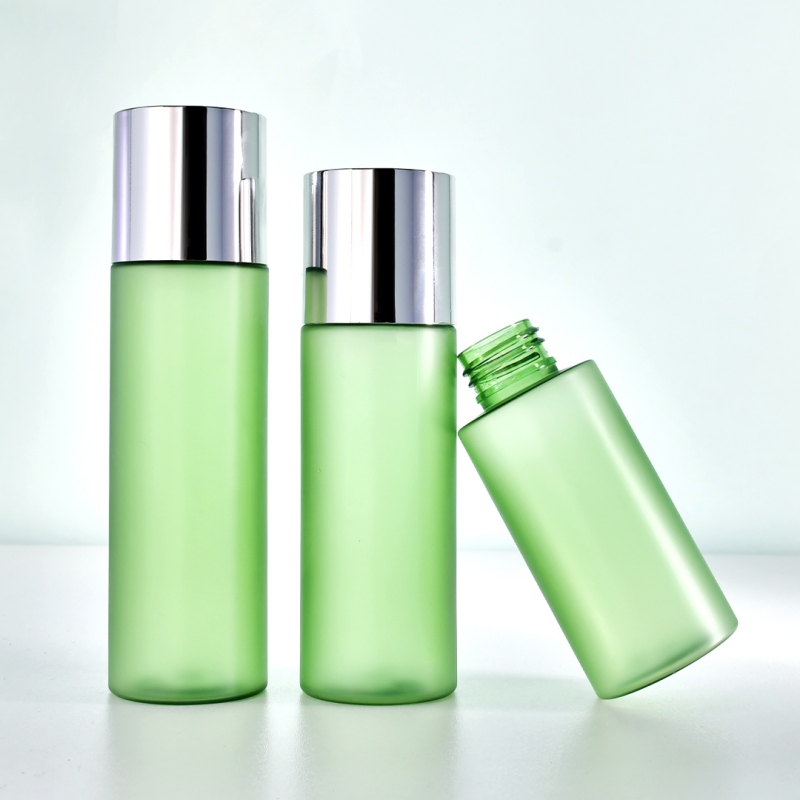

The most prevalent type of neck finish is the continuous thread (CT) design. Continuous thread finishes feature a helical thread that runs uninterrupted around the bottle neck, allowing the closure to be screwed onto the bottle with one or more thread turns. CT finishes are widely used for both plastic bottles and glass bottles due to their versatility and ease of use. They are compatible with various closure types, including screw caps, dispensing caps, and child-resistant closures.
Beyond continuous thread finishes, other types of neck finishes are used for specific applications. Lug finishes, for example, feature multiple, evenly spaced, protruding threads that engage with corresponding lugs on the inside of a lug cap. Lug caps are commonly used for glass containers that require a vacuum seal, such as those used for canning or preserving food products. Another less common type is the bayonet finish, which uses a partial thread that locks into place with a partial turn of the cap.
| Thread Finish Number | Description |
|---|---|
| 400 | One full thread turn around the neck. |
| 410 | 1.5 thread turns around the neck. |
| 415 | Two thread turns around the neck. |
| 425 | Similar to 400 but with a narrower thread width. |
| 430 | Tall neck finish, often used for dispensing closures. |
The thread style of a neck finish significantly impacts the selection and functionality of the closure. Different thread styles offer varying levels of security, ease of opening and closing, and compatibility with specific closure types. Continuous thread finishes, for instance, are highly versatile and can accommodate a wide range of closures, including screw caps, flip-top caps, and dispensing closures like pumps and sprayers.
The number of thread turns also plays a role in closure functionality. A neck finish with more thread turns generally provides a more secure seal, as it increases the thread engagement between the bottle and the closure. However, it may also require more rotations to fully tighten or remove the closure. For applications where quick and easy access to the product is essential, a neck finish with fewer thread turns may be preferred.
Matching closure sizes to neck finishes is crucial for achieving a proper fit and preventing leaks or other packaging issues. Closure sizes are typically designated by the same two numbers used for neck finishes, with the first number representing the diameter of the closure in millimeters and the second number indicating the compatible thread style. For example, a 28-410 closure is designed to fit a bottle with a 28-410 neck finish.
It is essential to ensure that both the diameter and the thread style of the closure match those of the bottle neck. Using a closure with an incorrect diameter will result in either the closure being too loose or too tight to fit onto the bottle neck. Similarly, using a closure with a different thread style than the bottle neck will prevent proper thread engagement, compromising the seal.
While the fundamental principles of neck finishes apply to both plastic bottles and glass bottles, there are some notable differences between the two materials. Plastic bottles generally offer greater flexibility in neck finish design, as plastic can be molded into more complex shapes than glass. This allows for a wider range of thread styles and closure options for plastic containers. Plastic bottles often use shallower threads compared to glass bottles, as plastic is a softer material that does not require as much thread depth for a secure seal.
Glass bottles, on the other hand, typically have deeper threads to ensure adequate thread engagement and prevent breakage, as glass is more brittle than plastic. Glass bottles may also utilize different thread styles that are less common in plastic packaging, such as lug or bayonet finishes. The Glass Packaging Institute (GPI) has established standards for neck finishes on glass containers, while the Society of the Plastics Industry (SPI) has developed standards for plastic containers. The neck finish on a glass bottle may sometimes include a thicker ring of glass, called a bead, which can be used to secure a tamper-evident band.
Achieving proper thread engagement between the bottle and closure can be challenging due to several factors. One of the primary challenges is the inherent variability in manufacturing processes. Both bottles and closures are subject to slight variations in dimensions during production, which can affect the thread fit. To account for this variability, neck finish specifications include a tolerance range that allows for minor deviations from the nominal dimensions.
Another challenge is the potential for misalignment between the bottle and closure during capping. If the closure is not properly aligned with the bottle neck when it is applied, the threads may not engage correctly, resulting in a weak seal or cross-threading. Cross-threading occurs when the threads of the closure are forced onto the bottle neck at an incorrect angle, damaging the threads and compromising the seal. Proper capping equipment and procedures are essential to minimize the risk of misalignment and cross-threading. The orientation of the closure on the bottle is determined by the relationship between the start of the bottle thread and the start of the threads on the cap.
Selecting the right neck finish for a specific application requires careful consideration of several factors, including the product being packaged, the desired closure type, and the overall packaging design. The first step is to determine the appropriate diameter for the bottle neck, which will depend on the size and shape of the bottle, as well as the desired dispensing method. For example, a larger diameter may be necessary for products that need to be poured or scooped, while a smaller diameter may be suitable for products that are dispensed in drops or sprays.
Once the diameter is determined, the next step is to choose the appropriate thread style. Continuous thread finishes are the most versatile and widely used, but other options, such as lug or bayonet finishes, may be more suitable for specific applications. The choice of thread style will also depend on the type of closure being used. For example, if a child-resistant closure is required, a specific thread style may be necessary to accommodate the locking mechanism.
The packaging industry is continually evolving, and cap and neck finishes are no exception. Several trends are shaping the future of neck finishes, driven by factors such as sustainability, convenience, and technological advancements. One major trend is the growing emphasis on sustainable packaging solutions. Manufacturers are increasingly exploring the use of recycled plastic and bio-based materials for both bottles and closures. Lightweighting is another trend, with manufacturers seeking to reduce the amount of material used in neck finishes without compromising performance. This can help lower transportation costs and reduce the environmental impact of packaging.
Another area of innovation is the development of more user-friendly closures. This includes features such as easy-open tabs, audible clicks to indicate proper sealing, and improved dispensing mechanisms. Tamper-evident and child-resistant features are also becoming increasingly important, particularly for products in the pharmaceutical and personal care industries. Advancements in materials science and manufacturing processes are enabling the creation of more complex and sophisticated neck finishes that incorporate multiple functions. For example, some closures now combine a dispensing feature with a tamper-evident seal or a child-resistant mechanism.
Neck finish refers to the configuration of the bottle neck, including the thread design, diameter, and height, which determines closure compatibility.
Understanding neck finish dimensions is crucial for ensuring a secure and functional fit between the bottle and cap.
Thread specifications, such as 28-410, indicate the diameter of the bottle neck and the thread style.
Continuous thread finishes are the most common, but other types like lug finishes exist for specific applications.
Thread style impacts closure selection and functionality, affecting security, ease of use, and dispensing.
Matching closure sizes to neck finishes, considering both diameter and thread style, is essential for a perfect fit.
Plastic bottles often have shallower threads and more design flexibility than glass bottles, which typically have deeper threads.
Challenges in achieving proper thread engagement include manufacturing variability and the potential for misalignment during capping.
Selecting the right neck finish involves considering the product, desired closure type, bottle material, and overall packaging design.
Future trends in cap and neck finishes include sustainable materials, lightweighting, user-friendly features, and multi-functional designs.
