This article delves into the intricate world of bottle neck finishes, exploring the various thread types, thread sizes, and specifications that determine the compatibility between a bottle cap and its corresponding bottle neck. Understanding neck finishes is crucial for ensuring a proper fit between the cap and neck, preventing leaks, and maintaining product integrity. We will examine common bottle thread styles, including continuous thread and non-continuous thread designs, and discuss how to accurately measure neck finish sizes. Whether you're working with plastic or glass bottles, this guide will provide you with a clear understanding of bottle neck finish terminology and specifications, enabling you to select the right bottle and closure combination for your needs. It is worth reading for anyone involved in packaging, from product developers to consumers who want to understand the crucial connection between a bottle and cap.
A bottle neck finish refers to the thread design and dimensions of the neck of the container that allow for the attachment of a cap or closure. The bottle neck finish is crucial because it determines the compatibility between a bottle and its corresponding cap, ensuring a secure seal that prevents leaks, maintains product freshness, and protects the contents from contamination. The thread on the bottle neck interlocks with the thread on the cap, creating a tight fit that is essential for preserving the integrity of the product inside.
Understanding bottle neck finishes is essential for anyone involved in packaging, from product developers and manufacturers to consumers. Choosing the correct bottle neck finish is vital for ensuring that the bottle and cap are compatible and that the closure functions correctly. An incompatible cap and neck combination can lead to leaks, spills, product spoilage, and even safety issues. Moreover, the bottle neck finish can also impact the overall aesthetic appeal of the product packaging, as different thread styles and neck finishes can create distinct visual appearances.

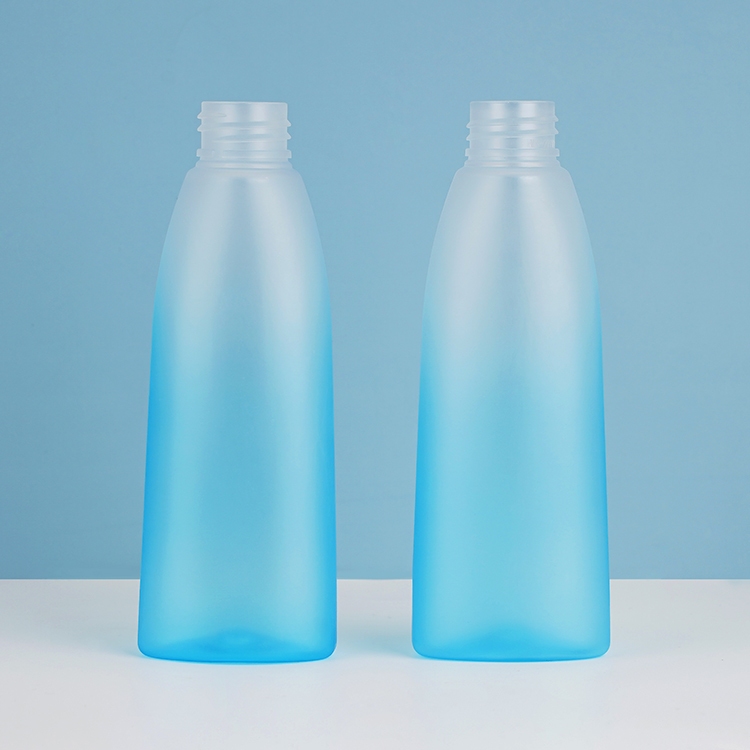

Common bottle thread styles generally fall into two main categories: continuous thread (CT) and non-continuous thread. Continuous thread, also called continuous thread, is the most prevalent thread style used for both plastic and glass bottles. As the name suggests, continuous thread features a continuous spiral thread that runs around the neck of the bottle, allowing the cap to be screwed on with one or more thread turns. Continuous thread caps are widely used for various applications, including beverages, food products, personal care items, and pharmaceuticals.
Non-continuous thread designs, on the other hand, feature interrupted or segmented threads that do not form a complete spiral. These types of threads are less common than continuous thread but are used for specific applications. One example is the lug thread style, which features multiple short, protruding threads that engage with corresponding lugs on the cap. Lug caps are often used for glass jars and bottles containing food products that require a vacuum seal. Another type of non-continuous thread is the bayonet thread, which features a partial thread that locks into place with a partial turn of the cap. Understanding the differences between continuous thread and non-continuous thread is essential for selecting the appropriate bottle and closure combination for a specific product.
Accurately measuring neck finish sizes is crucial for ensuring compatibility between a bottle and its cap or closure. The neck measurement refers to the diameter of the bottle neck, which is typically expressed in millimeters (mm). There are two primary measurements to consider: the inner diameter and the outside diameter. The inner diameter (I) of the bottle opening is rarely measured, unless for linerless closures. This measurement can tell you if there will be sufficient clearance for filling tubes.
Measurement | Description |
---|---|
T (Thread Diameter) | The outside diameter of the thread, measured across the outermost points of the threads. |
E (Neck Diameter/Root Diameter) | The diameter of the neck, measured across the neck at the root of the thread (where the thread base meets the neck). |
S (Start of Thread) | The measurement from the top of the finish to the top edge of the first thread. |
H (Height of Neck Finish) | The height of the neck finish, measured from the top of the neck to the point where the diameter of the thread intersects with the shoulder of the bottle. |
I (Inner Diameter) | The inner diameter of the bottle opening. It will determine if there is enough clearance for filling tubes. |
The outside diameter of the neck (E) is measured from one side of the neck to the other, including the threads. The outside diameter is a critical measurement for determining the correct cap size. However, there is another crucial measurement, which is the outside diameter of the thread (T). Neck finish sizes are typically expressed using these two measurements, with the thread diameter (T) listed first, followed by the neck finish height (H). For example, a 28-400 neck finish indicates that the thread diameter is 28 mm. You can determine a bottle’s neck finish by measuring the thread diameter (T) of the bottle neck.
Thread finish specifications may seem complex at first, but they provide essential information about the dimensions and characteristics of the bottle neck finish. A typical thread finish designation consists of two numbers separated by a hyphen or a slash, such as 28-400 or 28/400. The first number refers to the diameter of the bottle neck in millimeters, measured from one side of the neck to the other, including the threads. The second number refers to the thread style and the height of the neck finish.
The Glass Packaging Institute (GPI) and the Society of the Plastics Industry (SPI) have established standards for thread finishes, and the second number in the thread finish designation corresponds to these standards. For example, the "400" in a 28-400 neck finish indicates a continuous thread with one full thread turn around the neck. A "410" finish has 1.5 thread turns, a "415" finish has two thread turns, and a "430" finish has a tall neck and is often used for dispensing closures.
Here is a table explaining common GPI thread finish numbers:
Thread Finish Number | Description |
---|---|
400 | Continuous thread with one full thread turn around the neck. |
410 | Continuous thread with 1.5 thread turns around the neck. |
415 | Continuous thread with two thread turns around the neck. |
425 | Similar to 400 but with a narrower thread width. |
430 | Tall neck finish, often used for dispensing closures. |
450 | Similar to 400 but with an even narrower thread width, typically used for smaller diameter closures. |
500 | Continuous thread with a different thread profile than the 400 series. |
510 | Similar to 500 but with 1.5 thread turns. |
515 | Similar to 500 but with two thread turns. |
Thread depth and thread engagement are crucial factors that determine the security and effectiveness of the seal between a bottle and cap. Thread depth refers to the distance between the outermost and innermost surfaces of the thread. It can be calculated by subtracting the diameter of the neck (E) from the diameter of the thread (T) and dividing the result by two. A deeper thread generally provides a more secure seal, as it allows for greater thread engagement between the bottle and the cap.
Thread engagement refers to the amount of contact between the threads of the bottle and the threads of the cap when the cap is fully tightened. Thread engagement is essential for creating a tight seal that prevents leaks and maintains product integrity. The amount of thread engagement required depends on various factors, including the type of product being packaged, the materials of the bottle and cap, and the desired level of security. Generally, at least one full thread turn is recommended for proper fit and thread engagement.
Standard neck finish sizes have been established by industry organizations like the Glass Packaging Institute (GPI) and the Society of the Plastics Industry (SPI) to ensure compatibility and interchangeability between bottles and caps from different manufacturers. Some of the most common bottle thread sizes include:
18-400: Often used for small glass bottles and plastic bottles, such as those containing essential oils, fragrances, and pharmaceuticals.
20-400: A versatile size used for a wide range of products, including personal care items, cosmetics, and food products.
24-400: A popular choice for larger bottles, such as those used for shampoos, lotions, and other plastic containers for liquids.
28-400: Commonly used for beverage bottles, including water bottles and juice bottles, as well as for household cleaning products.
38-400: Typically used for larger containers, such as gallon jugs and industrial products.
These are just a few examples of standard neck finish sizes, and many other sizes are available to suit different bottle types and applications. When choosing a neck finish, it's important to consider the specific requirements of the product being packaged, including the desired level of security, the dispensing method, and the overall aesthetic of the packaging.
While the basic principles of neck finishes apply to both plastic and glass bottles, there are some key differences to be aware of. Plastic bottles generally have more flexibility in terms of neck finish design, as plastic can be molded into a wider range of shapes and sizes compared to glass. Plastic bottles also tend to have shallower threads than glass bottles, as plastic is a softer material and does not require as much thread depth for a secure seal.
Glass bottles, on the other hand, often have deeper threads to provide sufficient thread engagement and prevent breakage. Glass bottles may also have different thread styles than plastic bottles, such as lug or bayonet finishes, which are less common in plastic packaging. The Glass Packaging Institute (GPI) has established standard neck finish sizes for glass bottles, while the Society of the Plastics Industry (SPI) has developed standards for plastic bottles.
Matching caps and bottle neck finishes can be a complex task, as there are numerous thread styles, thread sizes, and neck finish dimensions to consider. One of the main challenges is ensuring compatibility between the bottle and cap, as even slight variations in thread dimensions can prevent a proper fit and compromise the seal. Using a cap that is not designed for a specific neck finish can result in leaks, spills, and product spoilage.
Another challenge is the lack of universal standardization across the packaging industry. While organizations like the GPI and SPI have established standard neck finish sizes, not all manufacturers adhere to these standards, leading to inconsistencies and confusion. Additionally, some manufacturers may use proprietary neck finish designs that are not compatible with standard caps, further complicating the matching process. The use of custom molds can further complicate matters when attempting to match bottles and caps.
Different bottle types may have specific neck finish requirements depending on their intended use. Water bottles, for example, often feature neck finishes that are designed for easy opening and closing, as well as for compatibility with drinking spouts or straws. Water bottles may use continuous thread or non-continuous thread designs, depending on the specific closure type. Some water bottles feature wide-mouth openings to accommodate ice cubes or to facilitate cleaning.
Other specialized bottle types, such as those used for pharmaceuticals or hazardous chemicals, may have specific neck finish requirements to ensure product safety and prevent tampering. Child-resistant closures, for instance, often feature unique thread designs that require a specific combination of downward pressure and twisting to open. Tamper-evident closures, which provide a visual indication if the bottle has been opened, may also utilize specialized neck finishes.
The field of bottle neck finishes is continually evolving, with ongoing innovations and trends aimed at improving functionality, sustainability, and user experience. One trend is the development of lighter-weight neck finishes that use less material while maintaining a secure seal. These lightweight designs can help reduce packaging weight, lower transportation costs, and minimize environmental impact.
Another trend is the increasing use of recycled plastic in bottle neck finishes. As sustainability becomes a greater priority for both manufacturers and consumers, the demand for neck finishes made from recycled materials is growing. Innovations in materials science and manufacturing processes are making it possible to create high-quality neck finishes from recycled plastic without compromising performance. For example, a 28-410 neck finish could be made using recycled materials.
Bottle neck finish refers to the thread design and dimensions of the neck of a container, which determine cap compatibility.
Understanding neck finishes is crucial for ensuring a secure seal, preventing leaks, and maintaining product integrity.
Common bottle thread styles include continuous thread (CT) and non-continuous thread designs.
Neck finish sizes are measured by the diameter of the bottle neck (E), including the threads. The diameter of the thread (T) and the height of the neck finish (H) are also crucial measurements.
Thread finish specifications, such as 28-400, indicate the neck diameter and thread style.
Thread depth and thread engagement are key factors for a secure seal between the bottle and cap.
Standard neck finish sizes, established by organizations like the GPI and SPI, ensure compatibility between bottles and caps.
Neck finishes can differ between plastic and glass bottles, with plastic offering more design flexibility.
Matching caps and bottle neck finishes can be challenging due to variations in thread dimensions and the lack of universal standardization.
Innovations in bottle neck finishes include lightweight designs, the use of recycled plastic, and specialized closures for specific applications.
