This article delves into the world of injection moulding, exploring its significance in creating high-quality plastic components, particularly within the cosmetic packaging realm. We'll uncover why the injection molding process is a preferred choice for manufacturers, highlighting the key advantages of injection molding that make it ideal for producing intricate and durable plastic parts. From cost-effectiveness in high-volume production to the versatility in material choices and design possibilities, this article is worth reading for anyone seeking to understand the intricacies of this widely used moulding process. Whether you're a brand owner, a designer, or simply curious about how your favorite cosmetic products are packaged, this comprehensive guide provides valuable insights into the power and precision of injection moulding. It is one of the most popular methods for producing plastic parts.
Injection moulding is a manufacturing process used for producing parts by injecting molten material into a mold. This material is typically a thermoplastic polymer that is heated until it becomes a melted plastic and is then injected under high pressure into the mold cavity. The molten plastic fills the cavity, taking on the shape of the mold. It is then allowed to cool and solidify before being ejected. The injection molding process is highly automated.
The injection molding process involves several key steps:
Clamping: The two halves of the injection mold are held together by a clamping unit.
Injection: The plastic material, usually in the form of pellets, is fed into a heated barrel, melted, and then injected into the mold cavity.
Dwelling: Pressure is maintained on the molten plastic within the mold to ensure all areas are filled.
Cooling: The plastic part is allowed to cool and solidify within the mold.
Ejection: Once cooled, the mold opens, and the finished plastic part is ejected.
This cycle repeats, allowing for the rapid production of identical parts. Injection molding is a repeatable process. This makes it suitable for mass production.
Injection moulding offers several major advantages that make it a popular choice for manufacturing plastic parts across various industries. One key advantage is its ability to produce complex shapes with high precision and tight tolerances. This makes it ideal for creating intricate components for cosmetic packaging, such as caps, closures, and applicators. Injection molding allows for intricate designs.
Another significant advantage is its efficiency in high-volume production. Once the injection mold is created, the process can be automated to produce thousands or even millions of identical parts quickly and cost-effectively. This high level of automation also reduces labor costs compared to many other manufacturing processes, as molding equipment typically runs with minimal supervision. Furthermore, injection moulding offers versatility in terms of material selection, allowing manufacturers to choose from a wide range of plastic resins with varying properties to meet specific product requirements. This is one of the advantages of injection molding.
Table 1: Advantages of Injection Moulding
| Advantage | Description |
|---|---|
| High Efficiency | Fast production cycle times enable high-volume output, making it suitable for mass production. |
| Precision & Accuracy | Can produce parts with tight tolerances and intricate details, ensuring consistency across large production runs. |
| Material Versatility | Compatible with a wide range of thermoplastic and some thermosetting polymers, offering flexibility in material selection based on desired properties. |
| Design Flexibility | Allows for complex shapes and designs that are difficult or impossible to achieve with other manufacturing processes. |
| Strength & Durability | Injection-molded parts can be very strong and durable, especially when using engineering-grade plastics or incorporating reinforcing materials. |
| Automation | Highly automated process reduces labor costs and minimizes human error. |
| Cost-Effectiveness | While initial tooling costs can be high, the cost per part is very low in high-volume production, making it cost-effective for large orders. |
| Repeatability | Produces highly consistent parts with minimal variation between units, ensuring quality and reliability. |
| Minimal Waste | Relatively low scrap rates compared to other manufacturing methods, as unused material can often be reground and reused. |
| Surface Finish Options | Can achieve a wide variety of surface finishes directly from the mold, reducing the need for secondary finishing operations. |

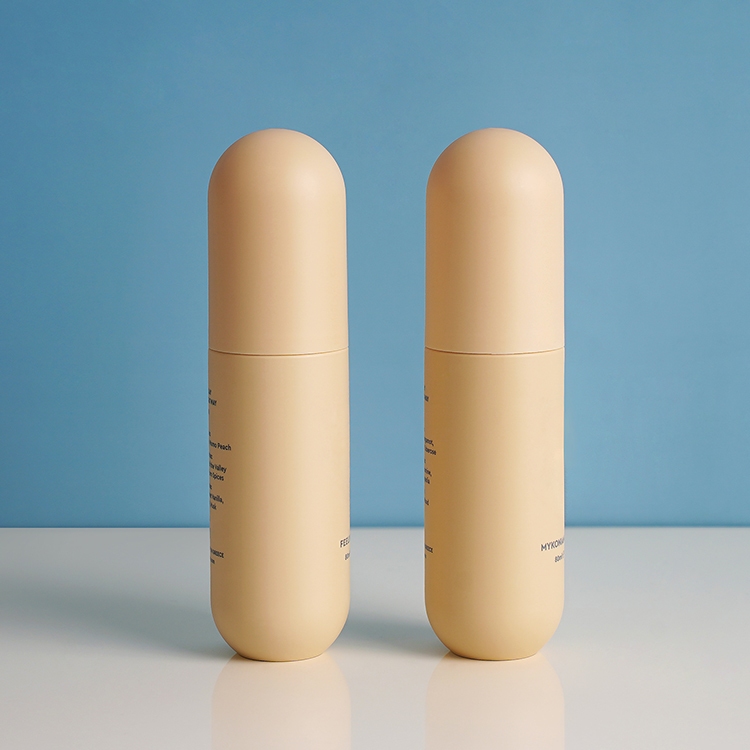

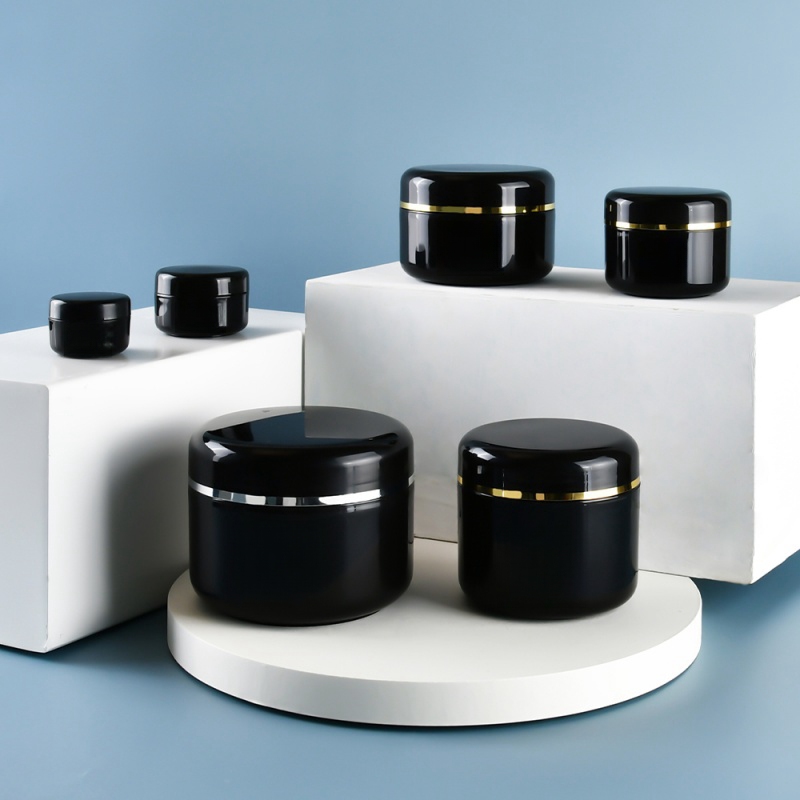

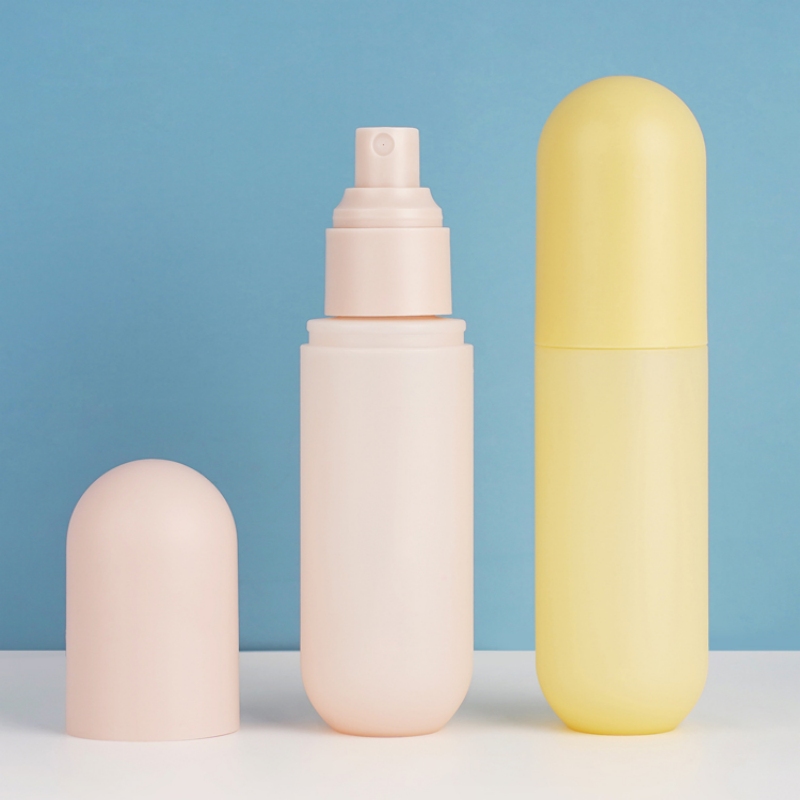

Injection moulding is particularly well-suited for cosmetic packaging for several reasons. The cosmetic industry often requires intricate and aesthetically pleasing designs to attract consumers and convey brand identity. Injection molding allows for the creation of complex shapes, fine details, and customized features that enhance the visual appeal of the packaging. Injection molding in cosmetic packaging is very common.
Moreover, cosmetic packaging often involves small, intricate parts like caps, closures, pumps, and applicators, which require high precision and consistency. Injection moulding excels at producing such components with tight tolerances, ensuring proper fit and functionality. The ability to use different plastics is also crucial. The versatility of injection moulding in terms of material selection is also advantageous, as cosmetic companies can choose from a range of plastic resins with varying properties, such as chemical resistance, barrier protection, and aesthetic appeal, to meet the specific needs of their products. This is an ideal way to produce plastic packaging.
The type of plastic used in injection moulding significantly impacts the process and the properties of the finished part. Different plastics have varying melting temperatures, flow characteristics, shrinkage rates, and cooling requirements, which must be considered when designing the injection mold and setting the processing parameters. You need to consider which plastics used are best for your product.
For example, some plastics, like polyethylene (PE) and polypropylene (PP), are relatively easy to mold and have good flow properties, making them suitable for thin-walled parts and complex shapes. Other plastics, like polycarbonate (PC) and acrylic (PMMA), offer high clarity and strength but may require higher processing temperatures and pressures. There are many different plastics available. You should research the physical and chemical properties of each one.
Successful injection moulding relies heavily on proper part design. Several key factors must be considered during the design phase to ensure that the part can be molded efficiently and meets the desired quality standards. One important consideration is the wall thickness of the part. Maintaining uniform wall thickness throughout the part helps ensure even cooling, reduces the risk of defects like warping or sink marks, and minimizes material usage.
Another crucial factor is the use of draft angles. Draft angles are slight tapers applied to the vertical walls of the mold cavity to facilitate easy ejection of the part from the mold. Without sufficient draft, the part may stick to the mold or become damaged during ejection. Additionally, the design should incorporate features like ribs and gussets to enhance the strength and rigidity of the plastic part while minimizing weight. Proper part design is essential.
Injection moulding is just one of several moulding processes used to create plastic parts. Other common methods include blow molding, extrusion, and thermoforming. Each process has its own strengths and weaknesses, making it more suitable for certain applications than others. Blow molding is another popular option.
Compared to blow molding, which is primarily used for creating hollow objects like bottles and containers, injection moulding offers greater design flexibility and the ability to produce complex shapes with intricate details. Injection moulding also typically provides tighter tolerances and better surface finishes than blow molding. There are different types of molding.
Table 2: Comparison of Injection Moulding and Blow Moulding
| Feature | Injection Moulding | Blow Moulding |
|---|---|---|
| Process | Injects molten plastic into a closed mold cavity under high pressure. | Inflates a heated plastic tube (parison or preform) inside a closed mold using compressed air. |
| Applications | Solid or thick-walled parts, complex shapes, parts requiring high precision and tight tolerances. | Hollow parts with thin walls, such as bottles, containers, and other hollow objects. |
| Design Flexibility | High - can create intricate details, complex geometries, and varying wall thicknesses. | Limited - generally restricted to hollow shapes with relatively uniform wall thickness. |
| Part Complexity | Can produce highly complex parts with undercuts, threads, and other features using slides and lifters. | Simpler part designs, typically with a single opening. |
| Material Options | Wide range of thermoplastics and some thermosets. | Primarily thermoplastics, especially HDPE, PET, and PP. |
| Production Volume | Economical for medium to high-volume production. | Economical for medium to high-volume production. |
| Tooling Costs | Higher initial tooling costs due to complex mold designs. | Lower tooling costs compared to injection molding. |
| Cycle Times | Relatively fast cycle times, depending on part size and complexity. | Can have faster cycle times than injection molding for simple parts, but slower for complex blow molded parts. |
| Surface Finish | Excellent surface finish directly from the mold, with options for various textures and polishes. | Good surface finish, but may require secondary operations for high-gloss or textured finishes. |
| Precision & Tolerances | High precision and tight tolerances achievable. | Lower precision and wider tolerances compared to injection molding. |
| Material Efficiency | Efficient use of material, with minimal waste (regrind can often be reused). | Can have more material waste in the form of flash (excess material) that needs to be trimmed. |
Tooling, which refers to the injection mold itself, plays a crucial role in the injection molding process. The tool is typically made from hardened steel and consists of two halves: the cavity side and the core side. The cavity forms the external shape of the part, while the core forms the internal shape. The design and construction of the tool are critical for ensuring part quality, production efficiency, and overall cost-effectiveness.
Tool design must take into account factors such as the type of plastic being used, the complexity of the part, the required tolerances, and the desired surface finish. The tool must also incorporate features like gates, runners, and cooling channels to ensure proper filling of the mold cavity and efficient cooling of the part. The quality of the tool directly impacts the quality of the injection molded parts. Proper tool design is essential.
Several factors influence the cost of injection moulding:
Tooling Costs: The initial investment in creating the injection mold is a significant cost factor. The complexity of the tool design, the materials used, and the precision required all impact tooling costs.
Material Costs: The type of plastic resin used affects the overall cost. Some plastics are more expensive than others due to their specific properties or processing requirements.
Production Volume: Injection moulding is most cost-effective for high-volume production runs. The cost per part decreases as the quantity increases due to economies of scale.
Cycle Time: The time it takes to complete one molding cycle impacts production efficiency and cost. Faster cycle times generally result in lower cost per part.
Labor Costs: While injection molding is highly automated, labor costs are still a factor, particularly for secondary operations like part finishing or assembly.
Machine Costs: The cost of the injection molding machine and associated equipment, such as robots and automation systems, must be factored into the overall investment.
Energy Costs: Injection molding consumes significant energy, particularly for heating the plastic and operating the machinery. Energy costs can vary depending on location and energy efficiency measures.
It's important to consider all of these factors when evaluating the cost-effectiveness of injection moulding for a specific project.
Choosing the right injection molding partner is crucial for the success of your project. Here are some key factors to consider:
Experience and Expertise: Look for an injection molder with a proven track record in producing parts similar to yours. Consider their experience with the specific type of plastic and molding process you require.
Technology and Equipment: Ensure that the injection molder has up-to-date injection molding equipment typically required for your project and the necessary technology to meet your quality and production requirements. State of the art injection molding equipment typically runs with a self-gating system.
Quality Management System: Verify that the injection molder has a robust quality management system in place, such as ISO 9001 certification, to ensure consistent quality and process control.
Capacity and Scalability: Consider the injection molder's production capacity and their ability to scale up production as your needs grow.
Location and Logistics: Evaluate the injection molder's location and its proximity to your manufacturing facility or target market. Consider transportation costs and lead times.
Communication and Customer Service: Choose an injection molding partner that is responsive, communicative, and committed to meeting your needs. Effective communication is essential for a successful partnership.
Cost Competitiveness: While cost is an important factor, it should not be the sole determinant. Consider the overall value offered by the injection molder, including their quality, reliability, and service.
By carefully evaluating these factors, you can find an injection molding partner that is well-equipped to meet your specific needs and contribute to the success of your project.
The future of injection moulding is likely to be shaped by several key trends:
Automation and Industry 4.0: Increased automation, including the use of robots and artificial intelligence, will further enhance efficiency, reduce labor costs, and improve process control in injection moulding.
Sustainable Materials: Growing demand for sustainable manufacturing practices will drive the adoption of bio-based plastics, recycled plastics, and other eco-friendly materials in injection moulding. This will also help the green initiatives of many companies.
Micro Molding: Advances in micro-molding technology will enable the production of increasingly smaller and more intricate plastic parts for applications in medical devices, electronics, and other industries.
3D Printing Integration: The lines between injection moulding and 3D printing may blur as hybrid processes emerge, combining the speed and efficiency of injection moulding with the customization and design flexibility of 3D printing.
Smart Factories: Injection moulding facilities will increasingly incorporate sensors, data analytics, and connectivity to create smart factories that optimize production, predict maintenance needs, and improve overall efficiency.
These trends suggest that injection moulding will continue to be a vital manufacturing process, evolving to meet the changing needs of various industries, including cosmetic packaging.
Table 3: Injection Molding - Advantages, Disadvantages, and Applications
| Aspect | Advantages | Disadvantages | Applications |
|---|---|---|---|
| Efficiency | High production rates, fast cycle times, suitable for large volumes. | Not cost-effective for small production runs. | Automotive parts, consumer electronics, household appliances, medical devices, packaging, toys |
| Precision | Produces parts with tight tolerances and high accuracy, consistent quality across large runs. | May not be suitable for extremely thick parts or those requiring very high dimensional stability under varying temperatures. | Parts requiring precise dimensions, intricate details, and consistent performance, such as gears, connectors, and medical components |
| Material Versatility | Can process a wide range of thermoplastic polymers, including commodity plastics, engineering plastics, and high-performance materials. | Limited to materials that can be melted and injected. | Products requiring specific material properties, such as high strength, heat resistance, chemical resistance, or specific aesthetic qualities |
| Design Flexibility | Allows for complex shapes, intricate details, and the incorporation of features like inserts, threads, and undercuts. | Design limitations imposed by the need for draft angles, uniform wall thickness, and ejection from the mold. | Complex parts, components with integrated features, custom designs, and parts requiring a high level of detail |
| Strength | Injection molded parts can have high strength and durability, especially when reinforced with fibers or fillers. | Strength can be affected by factors like weld lines, material degradation, and improper processing conditions. | Structural components, parts subjected to mechanical stress, and products requiring durability and impact resistance |
| Surface Finish | Offers a wide range of surface finishes, from high gloss to textured, directly from the mold. | Surface finish is dependent on mold quality and may require secondary operations for specific textures or high-gloss finishes. | Products where surface finish is important, such as consumer electronics, automotive interiors, and cosmetic packaging |
| Automation | Highly automated process, reducing labor costs and minimizing human error. | Requires skilled operators and technicians for setup, maintenance, and troubleshooting. | High-volume production, parts requiring consistent quality, and applications where automation can improve efficiency and reduce costs |
| Cost-Effectiveness | Low cost per part in high-volume production due to automation, material efficiency, and fast cycle times. | High initial tooling costs can make it less economical for small runs or prototyping. | Mass-produced parts, components for consumer goods, and products where cost is a major consideration |
| Repeatability | Excellent repeatability, producing highly consistent parts with minimal variation between units. | Process variations can occur due to factors like material inconsistencies, machine fluctuations, and environmental changes. | Parts requiring high consistency and uniformity, such as medical devices, electronic components, and automotive parts |
Injection moulding is a versatile and efficient manufacturing process widely used for producing plastic parts, including those used in cosmetic packaging.
The injection molding process involves injecting molten plastic into a mold cavity under high pressure, where it cools and solidifies into the desired shape.
Key advantages of injection moulding include high efficiency, precision, material versatility, design flexibility, strength, durability, automation, cost-effectiveness, and repeatability.
Injection moulding is particularly well-suited for cosmetic packaging due to its ability to create complex shapes, fine details, and customized features required in the industry.
The choice of plastic material is crucial in injection moulding, as different plastics have varying properties that affect the process and the finished part.
Proper part design is essential for successful injection moulding, with considerations such as wall thickness, draft angles, and the use of ribs and gussets.
Compared to other moulding processes like blow molding, injection moulding offers greater design flexibility and precision but may have higher tooling costs.
Tooling, or the injection mold itself, plays a critical role in the process, and its design and construction significantly impact part quality and production efficiency.
Cost factors associated with injection moulding include tooling, materials, production volume, cycle time, labor, machine costs, and energy consumption.
Finding the right injection molding partner involves evaluating their experience, technology, quality management system, capacity, location, communication, and cost competitiveness.
The future of injection moulding will likely involve increased automation, the use of sustainable materials, micro-molding, 3D printing integration, and smart factory technologies.
Injection molding is an important process in many industries.
Plastic is the most common material used in injection molding.
Injection molding can produce complex shapes with high precision.
The cosmetic packaging industry relies heavily on injection molding.
Injection molding is a cost-effective method for high-volume production.
The choice of plastic material is crucial in injection molding.
Proper part design is essential for successful injection molding.
Tooling plays a critical role in the injection molding process.
Injection molding is a highly automated process.
The future of injection molding is bright, with ongoing advancements in technology and materials.
