This article provides a comprehensive review of emulsion pumps, with a particular focus on the factors that influence emulsion stability. Emulsions, which are mixtures of two immiscible liquids like oil and water, are commonly found in various products, including cosmetics, pharmaceuticals, and food. Emulsion pumps are specifically designed to handle these delicate mixtures, ensuring their stability and proper dispensing. This article is worth reading for anyone seeking to understand the science behind emulsions and the technology of emulsion pumps, especially those involved in product formulation, packaging, and dispensing of emulsion-based products. Emulsion pumps are made to pump out a stable emulsion.
An emulsion is a mixture of two or more immiscible liquids, meaning liquids that do not naturally mix, such as oil and water. In an emulsion, one liquid is dispersed as tiny droplets within the other liquid. The liquid present as droplets is called the dispersed phase, while the liquid surrounding the droplets is called the continuous phase. For example, in a typical oil-in-water (oil-water) emulsion, oil droplets (dispersed phase) are suspended in water (continuous phase). Emulsions can also be water-in-oil, where water droplets are suspended in oil.
Emulsion stability refers to the ability of an emulsion to resist changes in its properties over time. In other words, it is the capacity of the emulsion to remain in its mixed state without separating into its constituent phases. Emulsion stability is crucial for many products, including cosmetics, pharmaceuticals, food products, and various industrial applications. An unstable emulsion can lead to issues such as creaming (where the dispersed phase rises to the top), sedimentation (where the dispersed phase settles to the bottom), flocculation (where the droplets clump together), coalescence (where the droplets merge to form larger droplets), and phase inversion (where the dispersed and continuous phases switch places). This is why emulsion stability is important.
An emulsion pump is a type of pump specifically designed to dispense emulsions. It works by using the principle of atmospheric balance to pump the emulsion from the container. When the pump head is pressed, the volume inside the pump chamber changes, creating a pressure difference that draws the emulsion upward through a dip tube and out through a nozzle. The pump is designed to maintain the emulsion's homogeneity during the dispensing process, preventing separation of the phases.
The emulsion pump head is the key to its operation. When at rest, the spring inside the pump pushes the pump head upward, and the pressure inside the pump is balanced with atmospheric pressure. When the pump head is pressed, the spring is compressed, and the volume in the spring chamber decreases, causing the pressure to rise. This forces the liquid to push open a valve (often a glass ball) and liquid enters the nozzle chamber. When the pump head is released, the spring pushes the pump head back up, increasing the volume in the spring chamber. This creates a negative pressure that causes the ball to close the nozzle and draw more liquid in the bottle enters the spring chamber. This process repeats each time the pump is used, creating a consistent flow of emulsion. Emulsion pumps are able to maintain the stability of the emulsion.
Emulsion instability refers to the breakdown of an emulsion over time, leading to the separation of its constituent phases. There are several types of emulsion instability, including:
Creaming: This occurs when the dispersed phase droplets, which are typically less dense than the continuous phase, rise to the top of the emulsion, forming a concentrated layer. This is a reversible process, and the emulsion can often be restored by shaking or stirring. It is similar to how cream rises to the top of milk.
Sedimentation: This is the opposite of creaming and occurs when the dispersed phase droplets are denser than the continuous phase and settle to the bottom of the container. Like creaming, this is also a reversible process.
Flocculation: This involves the aggregation of dispersed phase droplets into clusters or flocs, without the droplets actually merging. Flocculation can be reversible or irreversible, depending on the strength of the attractive forces between the droplets.
Coalescence: This is an irreversible process where the dispersed phase droplets merge together to form larger droplets. This eventually leads to complete phase separation, with the emulsion breaking down into its constituent phases.
Phase Inversion: In some cases, an emulsion can undergo phase inversion, where the dispersed phase becomes the continuous phase and vice versa. For example, an oil-in-water emulsion may invert to a water-in-oil emulsion. This can be triggered by changes in temperature, emulsifier concentration, or the addition of other substances.
Several factors can influence the stability of emulsions, including:
Droplet Size: Smaller droplet size generally leads to more stable emulsions. This is because smaller droplets have a higher surface area-to-volume ratio, which allows for greater interaction between the emulsifier and the phases, stabilizing the emulsion.
Interfacial Tension: The interfacial tension between the two phases plays a crucial role in emulsion formation and stability. Emulsifiers work by reducing the interfacial tension, making it easier to form and maintain the emulsion.
Viscosity: The viscosity of the continuous phase can affect emulsion stability. Higher viscosity can slow down the movement of droplets, reducing the rate of creaming, sedimentation, and coalescence. High viscosity can make for a more stable emulsion.
Emulsifier Type and Concentration: The type of emulsifier and its concentration are critical factors in emulsion stability. Emulsifiers form a protective layer at the interface between the phases, preventing the droplets from merging. The choice of emulsifier depends on the specific emulsion system and the desired stability. The correct emulsifier type is essential for emulsion stability.
Temperature: Temperature can significantly impact emulsion stability. High temperatures can increase the kinetic energy of the droplets, leading to more frequent collisions and a higher likelihood of coalescence. Temperature changes can also affect the solubility and effectiveness of the emulsifier.
Shear Forces: External forces, such as those encountered during pumping, mixing, or transportation, can also influence emulsion stability. High shear forces can disrupt the emulsion structure, leading to droplet deformation and potential coalescence. Shear can also help to create a more stable emulsion.
Evaluating the stability of emulsions is essential for ensuring product quality and shelf life. Several methods can be used to assess emulsion stability:
Visual Inspection: The simplest method is to visually inspect the emulsion over time for signs of instability, such as creaming, sedimentation, or phase separation. This can be done by storing the emulsion sample in a transparent container and observing any changes in its appearance.
Droplet Size Analysis: Measuring the droplet size distribution of the dispersed phase can provide valuable information about emulsion stability. Techniques such as microscopy, light scattering, and laser diffraction can be used to determine the particle size and distribution. An increase in droplet size over time indicates coalescence and instability.
Centrifugation: Centrifugation can accelerate the separation process, allowing for a faster assessment of emulsion stability. The emulsion is subjected to high centrifugal forces, and the rate of separation is measured. More stable emulsions will exhibit slower separation rates.
Rheological Measurements: Rheology involves studying the flow and deformation of materials. Rheological measurements, such as viscosity and viscoelasticity, can provide insights into the structure and stability of emulsions. Changes in rheological properties over time can indicate emulsion instability.
Interfacial Tension Measurements: Measuring the interfacial tension between the two phases can help assess the effectiveness of the emulsifier and the overall stability of the emulsion. Lower interfacial tension generally corresponds to greater stability.
Emulsifiers play a crucial role in maintaining emulsion stability by reducing the interfacial tension between the two immiscible liquids and forming a protective barrier around the dispersed phase droplets. Emulsifiers, also known as surfactants, are amphiphilic molecules, meaning they have both hydrophilic (water-loving) and hydrophobic (oil-loving) parts. When added to an emulsion, emulsifiers adsorb to the interface between the oil and water phases, with their hydrophilic parts oriented towards the water and their hydrophobic parts towards the oil.
This adsorption of emulsifiers at the interface lowers the interfacial tension, making it easier to form and maintain the emulsion. The emulsifiers also create a physical barrier around the droplets, preventing them from coalescing. This barrier can be electrostatic (due to charged groups on the emulsifier molecules) or steric (due to the physical size of the emulsifier molecules). The choice of emulsifier depends on the specific emulsion system, including the nature of the oil and water phases, the desired droplet size, and the required shelf life. Using the right emulsifier is essential to making a stable emulsion.

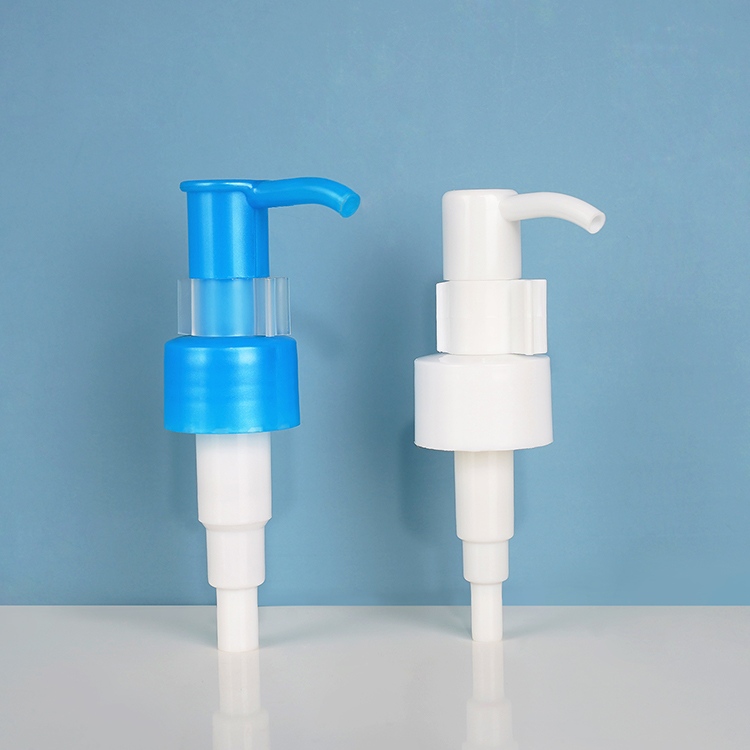

An emulsion pump is a specialized type of liquid dispenser designed to handle emulsions and maintain their stability during dispensing. The key features of an emulsion pump include:
Pump Head: The pump head is the part that the user presses to activate the pump. It is typically made of plastic and may have a variety of designs, such as a saddle head, a trigger sprayer, or a lotion pump head.
Pump Body: The pump body houses the internal components of the pump, including the spring, piston, and valve system. It is usually made of plastic and is designed to withstand the pressures generated during pumping.
Spring: The spring provides the restoring force that returns the pump head to its original position after each stroke. The spring's stiffness affects the force required to activate the pump.
Piston/Spring Chamber: The piston is a moving part that creates changes in volume and pressure within the pump. When the pump head is pressed, the piston moves downward, compressing the spring and decreasing the volume in the spring chamber. When the pump head is released, the spring pushes the piston upward, increasing the volume in the spring chamber.
Valve System: The valve system typically consists of a glass ball or a similar mechanism that controls the flow of liquid through the pump. When the pump head is pressed, the pressure in the spring chamber increases, forcing the glass ball upward and allowing the liquid to flow into the nozzle chamber. When the pump head is released, the negative pressure draws the glass ball back down, sealing the nozzle and pulling more liquid from the bottle into the spring chamber.
Nozzle Chamber: The nozzle chamber is the space where the liquid from the spring chamber accumulates before being dispensed through the nozzle.
Dip Tube: The dip tube is a plastic tube that extends from the bottom of the pump body into the liquid in the bottle. It allows the pump to draw the liquid upward into the pump mechanism.
Emulsion pumps may also have additional features, such as locking mechanisms to prevent accidental dispensing and special actuators designed for dispensing viscous emulsions. A good emulsion pump will have all these features.
Selecting the right emulsion pump is crucial for ensuring optimal performance and maintaining the stability of the emulsion during dispensing. Several factors should be considered when choosing an emulsion pump:
Emulsion Viscosity: The viscosity of the emulsion is a key consideration. High viscosity emulsions may require pumps with more powerful springs or larger orifices to ensure proper dispensing. The pump must be able to handle the viscosity of the emulsion.
Shear Sensitivity: Some emulsions are sensitive to shear forces, which can disrupt their structure and lead to instability. For shear-sensitive emulsions, it is important to choose a pump that generates minimal shear during dispensing. Emulsion pumps should generate minimal shear.
Dispensing Volume: The desired dispensing volume per stroke should also be considered. Different pumps offer different output volumes, and it is important to choose a pump that delivers the appropriate amount of product for the intended application.
Compatibility: The pump materials must be compatible with the emulsion being dispensed. Certain ingredients in the emulsion may react with or degrade certain types of plastic or rubber, leading to pump failure or product contamination.
Design and Ergonomics: The design and ergonomics of the pump should also be taken into account. The pump should be easy and comfortable to use, with a smooth actuation force and a well-designed nozzle that delivers the emulsion in the desired manner.
Improving emulsion stability in products dispensed by emulsion pumps requires a multi-faceted approach that addresses both the formulation of the emulsion and the design of the pump. Here are some strategies to enhance emulsion stability:
Optimize Emulsifier System: Selecting the right emulsifier or combination of emulsifiers is crucial for creating a stable emulsion. The emulsifier should be chosen based on the specific oil and water phases being used and the desired droplet size. The concentration of the emulsifier should also be optimized to ensure sufficient coverage of the droplet surfaces.
Control Droplet Size: Smaller droplet size generally leads to more stable emulsions. Techniques such as high-pressure homogenization or microfluidization can be used to reduce the droplet size during emulsion formation.
Increase Viscosity of Continuous Phase: Increasing the viscosity of the continuous phase can help slow down the movement of droplets, reducing the rate of creaming, sedimentation, and coalescence. This can be achieved by adding thickeners or viscosity modifiers to the formulation.
Minimize Shear During Pumping: Emulsion pumps should be designed to minimize the shear forces generated during dispensing. This can be achieved by using pumps with larger orifices, smoother internal surfaces, and optimized flow paths.
Proper Storage and Handling: Emulsions should be stored and handled properly to maintain their stability. This includes avoiding extreme temperatures, minimizing agitation, and protecting the emulsion from exposure to light and air.
| Strategy | Description |
|---|---|
| Optimize Emulsifier System | Select the right emulsifier(s) and concentration based on the oil and water phases and desired droplet size to ensure sufficient coverage of droplet surfaces. |
| Control Droplet Size | Reduce droplet size using techniques like high-pressure homogenization or microfluidization to enhance stability. |
| Increase Viscosity of Continuous Phase | Add thickeners or viscosity modifiers to increase the viscosity of the continuous phase, slowing down droplet movement and reducing instability. |
| Minimize Shear During Pumping | Design emulsion pumps to generate minimal shear forces during dispensing by using larger orifices, smoother internal surfaces, and optimized flow paths. |
| Proper Storage and Handling | Store and handle emulsions properly, avoiding extreme temperatures, minimizing agitation, and protecting from light and air exposure. |
The field of emulsion pump technology is continually evolving, driven by advancements in materials science, engineering, and a growing understanding of emulsion science. Some key trends shaping the future of emulsion pumps and emulsion stability include:
Smart Pumps: The integration of sensors and microelectronics into emulsion pumps is enabling the development of "smart" pumps that can monitor emulsion properties, adjust dispensing parameters in real-time, and provide feedback to the user. These smart pumps can help optimize emulsion stability and ensure consistent product performance.
Sustainable Materials: There is a growing focus on using sustainable and eco-friendly materials in the construction of emulsion pumps. This includes the use of bio-based plastics, recycled materials, and materials that are easier to recycle at the end of the pump's life.
Microfluidics: Microfluidic technologies are being applied to the design of emulsion pumps, allowing for precise control over droplet size and emulsion structure. These technologies enable the creation of highly uniform emulsions with enhanced stability.
Advanced Emulsifiers: Research into new and improved emulsifiers is ongoing, with a focus on developing emulsifiers that are more effective at stabilizing emulsions, even under challenging conditions such as high temperatures or in the presence of electrolytes.
Personalized Emulsions: Advances in emulsion science and pump technology are paving the way for personalized emulsion products tailored to individual needs and preferences. This could involve customizing the viscosity, texture, and even the active ingredients of the emulsion based on a person's skin type, preferences, or specific requirements.
An emulsion is a mixture of two immiscible liquids, and emulsion stability refers to its ability to resist separation over time.
Emulsion pumps use the principle of atmospheric balance to dispense emulsions while maintaining their homogeneity.
Emulsion instability can manifest as creaming, sedimentation, flocculation, coalescence, or phase inversion.
Factors affecting emulsion stability include droplet size, interfacial tension, viscosity, emulsifier type and concentration, temperature, and shear forces.
Emulsion stability can be evaluated through visual inspection, droplet size analysis, centrifugation, rheological measurements, and interfacial tension measurements.
Emulsifiers play a crucial role in maintaining emulsion stability by reducing interfacial tension and forming a protective barrier around droplets.
Key features of an emulsion pump include the pump head, pump body, spring, piston, valve system, nozzle chamber, and dip tube.
Choosing the right emulsion pump involves considering factors such as emulsion viscosity, shear sensitivity, dispensing volume, compatibility, and ergonomics.
Emulsion stability can be improved by optimizing the emulsifier system, controlling droplet size, increasing the viscosity of the continuous phase, minimizing shear during pumping, and proper storage and handling.
Future trends in emulsion pump technology include smart pumps, sustainable materials, microfluidics, advanced emulsifiers, and personalized emulsions.
